Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0208328Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL  .

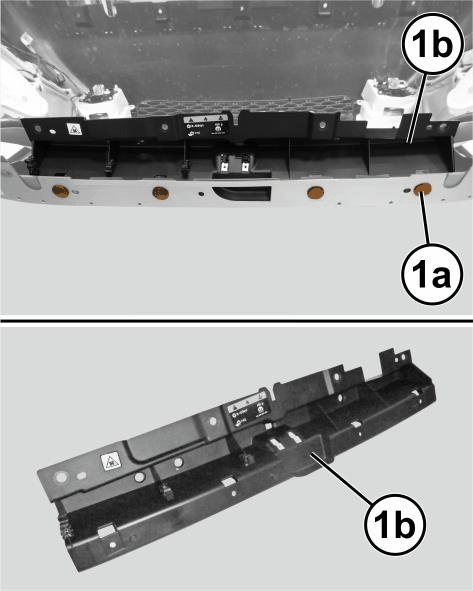

  2. Release the push pins (1a) and remove the bracket (1b) from the front fascia.
