Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

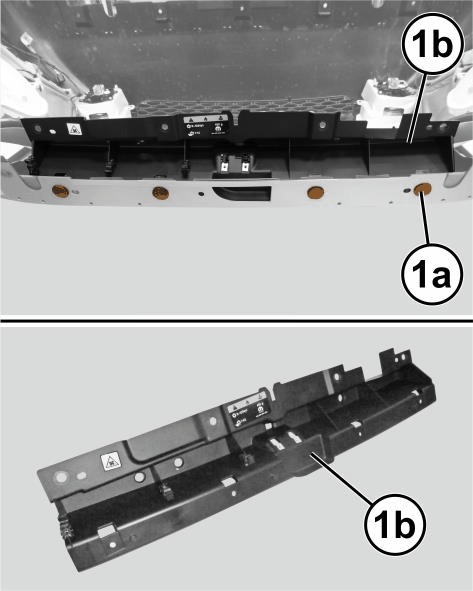

GC0189216Courtesy of CHRYSLER GROUP, LLC
  1. Install the bracket (1b) onto the fascia and install the push pins (1a).
  2. Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION  .
