Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® RTV MS-GF44 or Mopar® Axle RTV MS-GF46 when specified may result in engine fluid leakage.

NOTE:

Following the application of Mopar® RTV MS-GF44 or Mopar® Axle RTV MS-GF46 to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

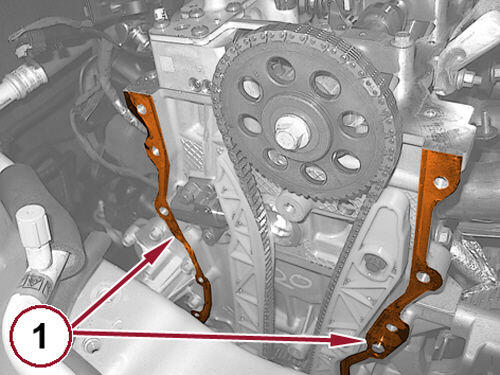

GC0165102Courtesy of CHRYSLER GROUP, LLC
  1. Apply Mopar® Axle RTV MS-GF46  to the engine block and cylinder head to timing cover mating surfaces (1) as shown in the figure.

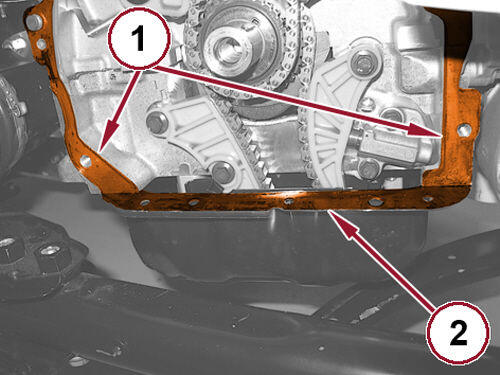

    GC0166012Courtesy of CHRYSLER GROUP, LLC
  2. Continue applying Mopar® Axle RTV MS-GF46  to the engine block and cylinder head to timing cover mating surfaces (1) as shown in the figure.
  3. Apply a bead (2 mm) of Mopar® RTV MS-GF44  to the oil pan (2) as shown in the figure.

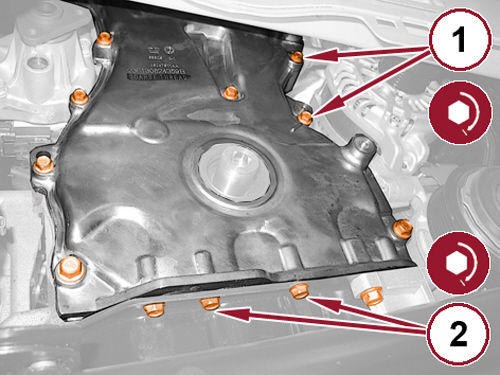

    GC0163306Courtesy of CHRYSLER GROUP, LLC
  4. Working from the wheel well, install the engine timing cover and tighten the lower mounting bolts (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  5. Install the A/C compressor support bracket and tighten the bolts to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  6. Tighten the engine timing cover to oil pan bolts (2) to the proper specification. Refer to TORQUE SPECIFICATIONS  .

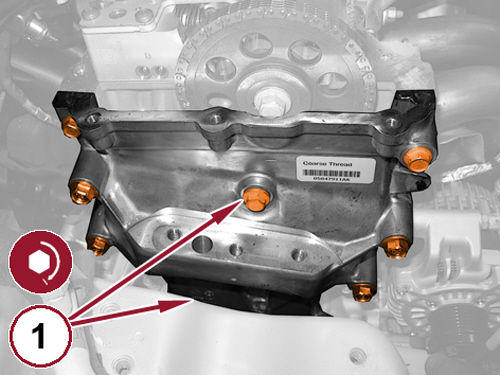

    GC0164656Courtesy of CHRYSLER GROUP, LLC
  7. Tighten the engine timing cover to cylinder head bolts (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .

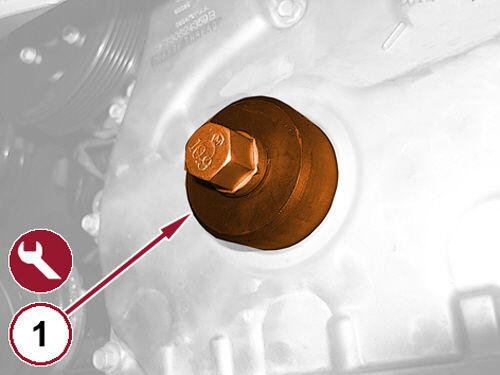

    GC0163703Courtesy of CHRYSLER GROUP, LLC
  8. Install a new front crankshaft oil seal with the (special tool #9506, Installer, Oil Seal) (1).

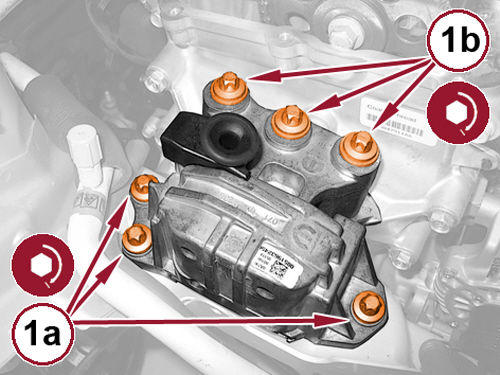

    GC0166049Courtesy of CHRYSLER GROUP, LLC
  9. Install the right engine mount isolator and tighten the bolts (1a) and (1b) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  10. Remove the (special tool #8534C, Fixture, Driveline Support).

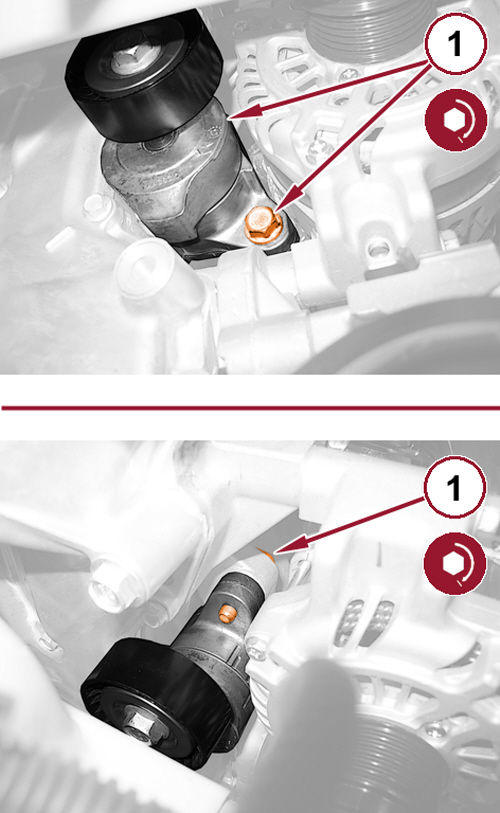

    GC0165128Courtesy of CHRYSLER GROUP, LLC
  11. Install the accessory drive belt tensioner (1) and tighten the bolts to the proper specification. Refer to TORQUE SPECIFICATIONS  .

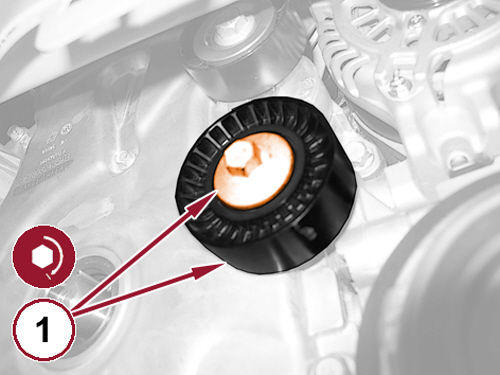

    GC0166120Courtesy of CHRYSLER GROUP, LLC
  12. Install the accessory drive belt idler pulley (1) and tighten the bolt to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  13. Install the generator

    Refer to GENERATOR, REMOVAL AND INSTALLATION .

  14. Install the water pump pulley. Refer to PUMP, WATER, REMOVAL AND INSTALLATION .
  15. Install the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
  16. Install the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  17. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  18. Install the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  19. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  20. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  21. Install the right front splash shield and wheel. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  22. Remove the support and lower the vehicle.
