Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

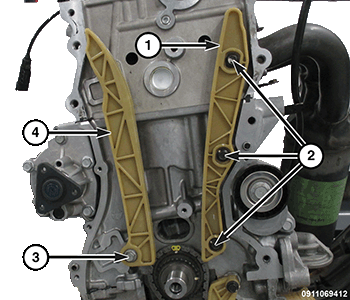

If removed, install the timing chain guide (1) with three bolts (2) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS .
If removed, install the tensioner arm (4) with the bushing and bolt (3) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

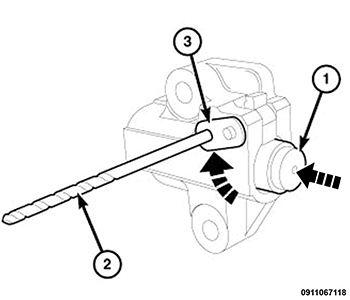

Reset the timing chain tensioner.

Courtesy of CHRYSLER GROUP, LLC

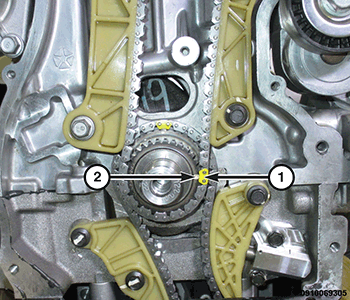

Align the timing chain onto the crankshaft sprocket mark (2) using the painted link (1) as a guide.

Courtesy of CHRYSLER GROUP, LLC

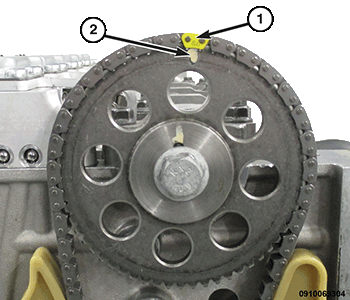

Align the timing chain onto the camshaft sprocket mark (2) using the painted link (1) as a guide.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not use an impact wrench to tighten the camshaft sprocket bolt. Damage to the camshaft dowel pin and camshaft may occur.

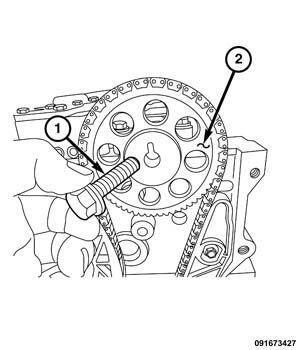

Align the sprocket with the camshaft dowel and install the camshaft sprocket (2) on the camshaft with the bolt (1).

Courtesy of CHRYSLER GROUP, LLC

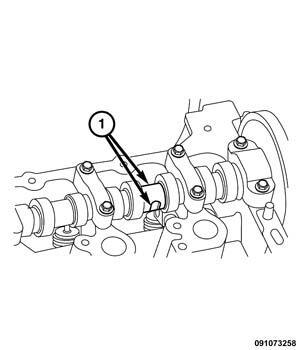

Using a wrench to hold the camshaft flats (1) tighten the camshaft sprocket bolt to the proper specification. Refer to TORQUE SPECIFICATIONS .
Remove the pin (1/8 in. drill bit) from the engine timing chain tensioner.
Verify that the valve timing is correct. Refer to VALVE TIMING VERIFICATION .
Install the engine timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION .
