2.4L With Automatic Transmission - AWD: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the powertrain in the engine compartment using a hydraulic crane and an adjustable lift sling connected to the lifting brackets.
    GC0163030Courtesy of CHRYSLER GROUP, LLC

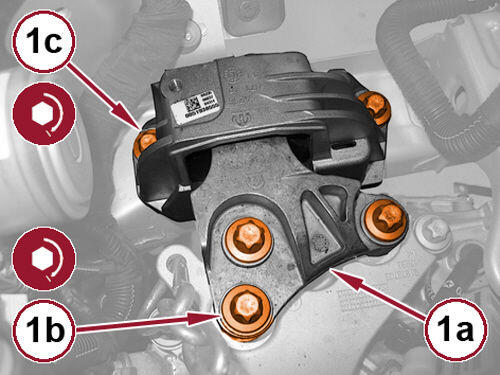

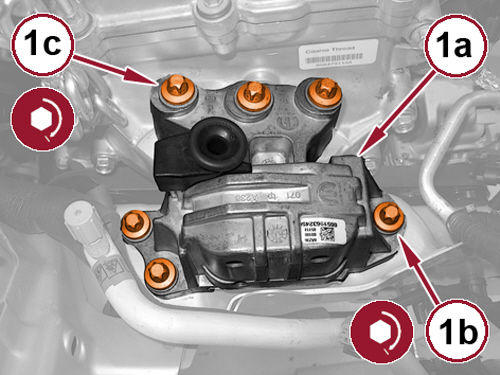

  2. Install the right engine mount isolator (1a) and tighten the bolts (1b) and (1c) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
    GC0163571Courtesy of CHRYSLER GROUP, LLC
  3. Install the left engine mount isolator (1a) and tighten the bolts (1b) and (1c) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  4. Remove the hydraulic crane and sling connected to the powertrain lifting brackets.
  5. Remove the powertrain lifting brackets from the engine and tighten the exhaust manifold nuts to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0165436Courtesy of CHRYSLER GROUP, LLC
  6. Install the camshaft position sensor to the cylinder head and tighten the stud bolt (1) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0165588Courtesy of CHRYSLER GROUP, LLC
  7. Install the camshaft position sensor heat shield with the nut (1) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0164962Courtesy of CHRYSLER GROUP, LLC
  8. Install the exhaust manifold heat shield with the bolts (2) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  9. Install the wire harness bracket to the exhaust manifold heat shield with the bolt (1b) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  10. Connect the upstream oxygen sensor wire harness connector (1a).
    GC0163344Courtesy of CHRYSLER GROUP, LLC
  11. Install the battery ground cable with the bolt (1) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0165036Courtesy of CHRYSLER GROUP, LLC
  12. Connect the Transmission Control Module (TCM) wire harness connector (1) and close the wire harness retaining clip.
    GC0163222Courtesy of CHRYSLER GROUP, LLC
  13. Pull back the lock slider (2) and engage the gear selector cable to the bracket.
  14. Engage the gear selector cable to the lever arm (1) and check its function.
    GC0166156Courtesy of CHRYSLER GROUP, LLC
  15. Connect the engine wire harness connector (1).
    GC0163044Courtesy of CHRYSLER GROUP, LLC
  16. Connect the transmission wire harness connector (2) by rotating the connector lock nut.
  17. Close the wire harness retaining clip (1) near the transmission wire harness connector.
    GC0165254Courtesy of CHRYSLER GROUP, LLC

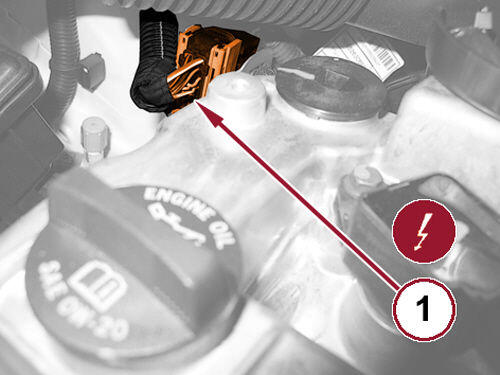

  18. Connect the power transfer unit actuator wire harness connector (1).
    GC0163788Courtesy of CHRYSLER GROUP, LLC
  19. Connect the fuel supply hose and vapor purge hose quick couplings (1).
    GC0163791Courtesy of CHRYSLER GROUP, LLC
  20. Connect the heater core hose quick couplings (1).
    GC0171629Courtesy of CHRYSLER GROUP, LLC
  21. Connect the block heater wire harness connector (3) if equipped.
    GC0174621Courtesy of CHRYSLER GROUP, LLC
  22. Connect the starter cable (1) and generator cable (2) to the power distribution center and tighten the nut to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0164703Courtesy of CHRYSLER GROUP, LLC
  23. Install the vacuum hose to the vacuum pump and connect the quick coupling (1).
    GC0164944Courtesy of CHRYSLER GROUP, LLC
  24. Connect the A/C evaporator hose quick coupling (1).
    GC0166177Courtesy of CHRYSLER GROUP, LLC
  25. Install the right side load beam with the bolts (1) tightened to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  26. Install the left side load beam with the bolts tightened to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0165329Courtesy of CHRYSLER GROUP, LLC

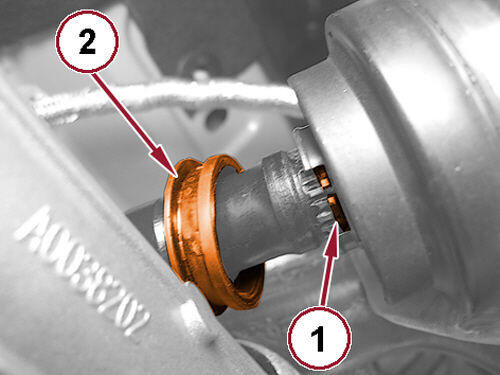

  27. Install a NEW  driveshaft snap ring (1).
  28. Install a NEW  driveshaft dust cover (2).
  29. Install the driveshaft into the power transfer unit and engage the snap ring.
  30. Install the driveshaft dust cover.
    GC0163864Courtesy of CHRYSLER GROUP, LLC

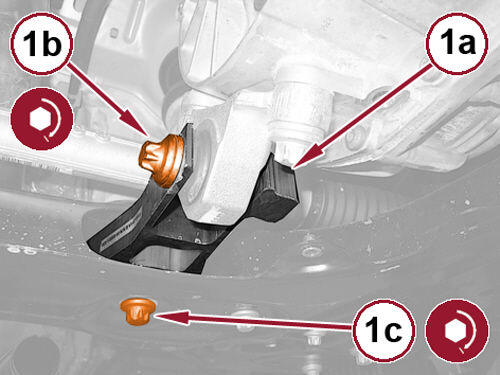

  31. Install the rear engine mount isolator (1a) with the bolts (1b) and (1c) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0166081Courtesy of CHRYSLER GROUP, LLC

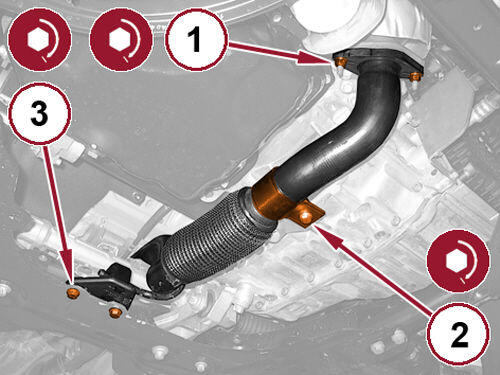

  32. Install a NEW  flange gasket and connect the exhaust pipe to the catalytic converter with NEW  nuts (1) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  33. Install the exhaust pipe support bracket bolt (2) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  34. Install the exhaust pipe hanger bolts (3) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0162945Courtesy of CHRYSLER GROUP, LLC

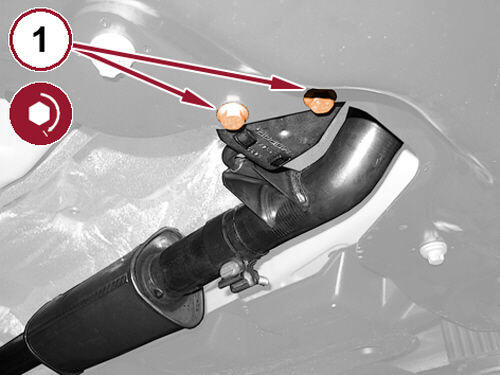

  35. Install the exhaust pipe hanger bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  36. Install the headlamp mounting crossmember. Refer to CROSSMEMBER, HEADLAMP MOUNTING, REMOVAL AND INSTALLATION .
  37. Install the right front headlamp. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
  38. Install the left front headlamp. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
  39. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
    GC0165012Courtesy of CHRYSLER GROUP, LLC
  40. Install the pressurized coolant bottle and connect the quick coupling (1).
  41. Install the degas hose to the pressurized coolant bottle (2) and tighten the clamp.
  42. Install the left and right halfshafts. Refer to FRONT, REMOVAL AND INSTALLATION and REAR, REMOVAL AND INSTALLATION .
  43. Install the right front wheel splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  44. Install the front tire and wheel assemblies. Refer to REMOVAL AND INSTALLATION .
  45. Install the battery tray and battery. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
  46. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to ENGINE OIL AND FILTER CHANGE  .
  47. Fill the transmission. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
  48. Install the front belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  49. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  50. Install the clean air hose and engine cover. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION .
  51. Evacuate and charge the refrigerant system. Refer to R-1234YF REFRIGERANT SYSTEM EVACUATE and R-1234YF REFRIGERANT SYSTEM CHARGE .
  52. Fill the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L .
  53. Install the hood. Refer to HOOD, REMOVAL AND INSTALLATION .
  54. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  55. Start engine and check for leaks.
  56. Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to ADDING ADDITIONAL COOLANT .
  57. Remove the support and lower the vehicle.
NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to POWERTRAIN VERIFICATION TEST .
