Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0166163Courtesy of CHRYSLER GROUP, LLC
  1. Install a new exhaust manifold gasket onto the cylinder head, taking care that the arrow (a) shown in the figure is pointing downwards.
    GC0164733Courtesy of CHRYSLER GROUP, LLC
  2. Install the manifold catalyst (1c). Tighten the bolts (1b) and the nuts (1a) to the proper specification. Refer to TORQUE SPECIFICATIONS  .

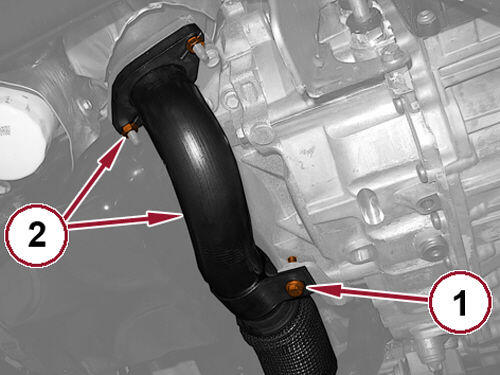

    GC0163333Courtesy of CHRYSLER GROUP, LLC
  3. Install the catalytic converter lower support bracket and securely tighten the bolts.
  4. Using a NEW  gasket, install the exhaust pipe (2) to the catalyst flange. Using NEW  nuts install and tighten the nuts to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  5. Install the bolt (1) securing the exhaust pipe to the transmission bracket and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  6. Install the lower heat shield and securely tighten the bolts.
  7. Install the upper heat shield onto the exhaust manifold and securely tighten the nuts.
  8. Install the front oxygen sensor support bracket and securely tighten the bolts then engage the wire harness retainer.
  9. Connect the front oxygen sensor wire harness connectors.
  10. Connect the lambda sensor wire harness connector.
  11. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  12. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  13. Connect the negative battery cable.
