Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

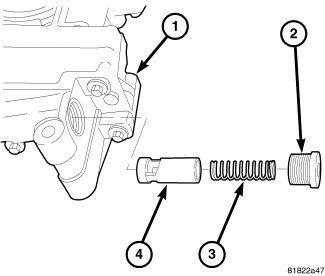

GC0121339Courtesy of CHRYSLER GROUP, LLC
  1. Lightly coat the pressure regulating valve with clean engine oil and install valve (4).
  2. Install the spring (3) and cap (2).
  3. Tighten the cap to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  4. Install the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION  .
