Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0164851Courtesy of CHRYSLER GROUP, LLC
  1. Using the (special tool #C-4171-3, Seal Driver Handle, Short), (special tool #9706, Installer, Crankshaft Rear Oil Seal) and r (special tool #9509, Installer, Oil Seal) (1), install a NEW  rear crankshaft oil seal.

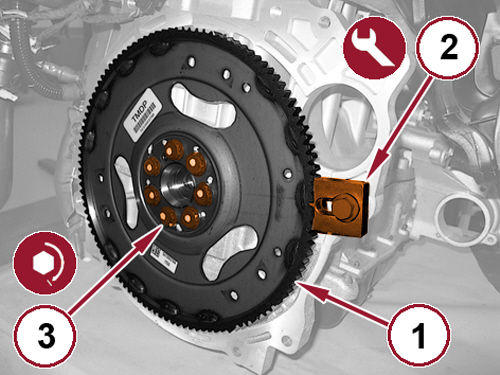

    GC0163874Courtesy of CHRYSLER GROUP, LLC
  2. Install the engine flywheel (1) and partially tighten the bolts (3).
  3. Fit the 1860741000 (EMEA) flywheel stop tool (2).
  4. Tighten the flywheel mounting bolts (3) to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  5. Remove the 1860741000 (EMEA) flywheel stop tool.
  6. Install the transmission to the engine

    Refer to REMOVAL AND INSTALLATION  .

  7. Install the engine and transmission in the vehicle. Refer to REMOVAL AND INSTALLATION  .
  8. Remove the support and lower the vehicle.
