Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When servicing components near the vacuum pump, avoid contact with the plastic nipple/connector fitting that connects the vacuum pump to the brake booster hose. It is possible to crack the plastic nipple resulting in a brake booster vacuum leak.

NOTE:

The vacuum connector fitting is serviceable by itself. if the connector fitting is damaged, it must be replaced.

NOTE:

The connector fitting O-ring seal must be replaced if the fitting is removed from the pump. Service fittings include a new O-ring pre-installed.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The vacuum pump connector fitting O-ring seal (1) must be replaced if the fitting is removed from the pump. Service fittings include a new O-ring pre-installed.

If removed, lightly lubricate a NEW O-ring seal (1) with clean engine oil and install on the vacuum fitting.

Courtesy of CHRYSLER GROUP, LLC
Install the vacuum fitting (1) with the screw (2) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install NEW vacuum pump O-ring seals (1, 2).

Courtesy of CHRYSLER GROUP, LLC
Clean the vacuum pump sealing surfaces with isopropyl alcohol in preparation for sealant application.
CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Engine Sealant RTV Silicone Rubber Adhesive may result in engine fluid leakage.

CAUTION:
Following the application of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

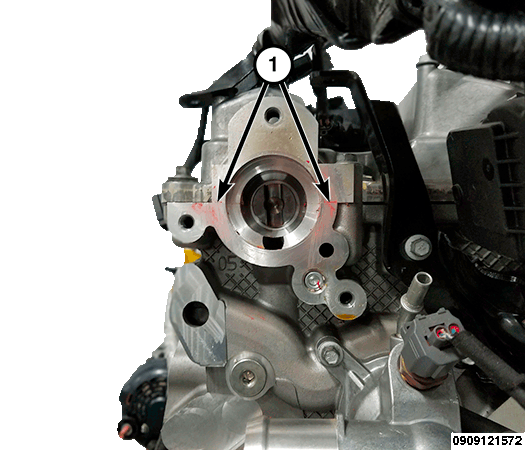

Apply a 2 to 3 mm wide bead of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the vacuum pump sealing surface at the rear exhaust camshaft bearing cap/cylinder head T-joint (1).

Courtesy of CHRYSLER GROUP, LLC
Align the pump drive tab with the pump drive slot located on the cam shaft and install the vacuum pump (1) into the cylinder head opening with three bolts (2) tightened to the proper specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Connect the vacuum hose quick-connect fitting (1) to the vacuum pump and secure the vacuum hose to the support bracket (2).
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Run the engine and check the vacuum pump for proper operation.
