Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0180756Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the positive crankcase ventilation (PCV) valve (2) and the three engine cover ball studs (1).
    GC0171357Courtesy of CHRYSLER GROUP, LLC
  2. Install a NEW  cylinder head cover gasket (1) and tube seals (2) into the cylinder head cover.
    GC0173270Courtesy of CHRYSLER GROUP, LLC
  3. Clean the cylinder head cover sealing surfaces with isopropyl alcohol in preparation for sealant application.
    CAUTION:

    Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Engine Sealant RTV Silicone Rubber Adhesive may result in engine fluid leakage.

    CAUTION:

    Following the application of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within the next 10 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

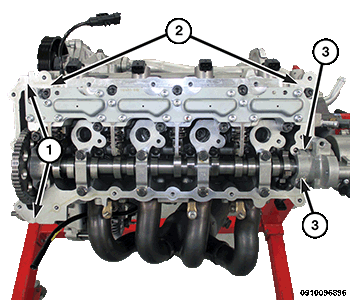

  4. Apply a 2 to 3 mm wide bead of Mopar® Engine Sealant RTV Silicone Rubber Adhesive to the cylinder head cover sealing surface in six places:
    • Front cover/cylinder head T-joint (1).
    • Variable Valve Actuator Assembly (VVAA)/cylinder head T-joint (2).
    • Rear exhaust camshaft bearing cap/cylinder head T-joint (3).
    GC0171928Courtesy of CHRYSLER GROUP, LLC
  5. Install the cylinder head cover to the cylinder head with thirteen bolts and six stud-bolts (1) hand tight.
    GC0173297Courtesy of CHRYSLER GROUP, LLC

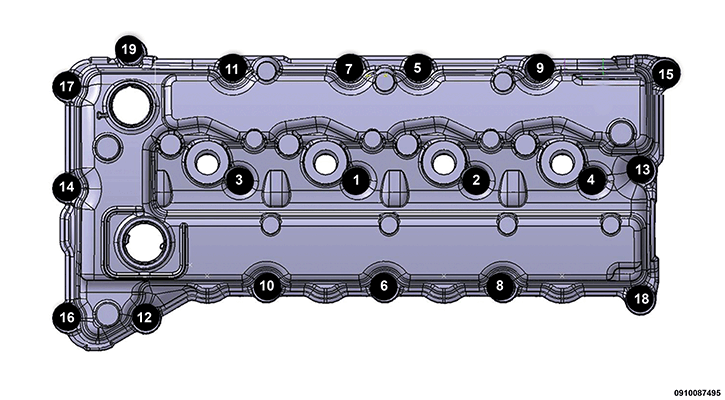

  6. Tighten the thirteen bolts and six stud-bolts in the sequence shown to the proper specification. Refer to TORQUE SPECIFICATIONS  .
    GC0171292Courtesy of CHRYSLER GROUP, LLC
  7. Install the intake side wire harness tray (1) with three retainers (2).
  8. Install the exhaust side wire harness tray (3) with three retainers (4).
  9. Install the ignition coils. Refer to COIL, IGNITION, REMOVAL AND INSTALLATION .
    GC0171332Courtesy of CHRYSLER GROUP, LLC

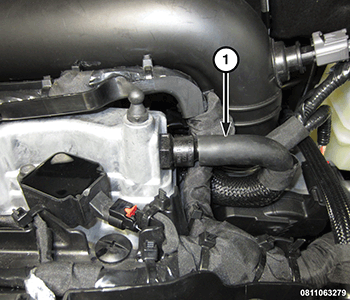

  10. Install the hose (1) to the PCV valve.
    GC0180783Courtesy of CHRYSLER GROUP, LLC
  11. If removed, install the make up air hose (1) to the cylinder head cover fitting, align the hose to the nipple (3) and tighten the CLIC E®  type clamp (2) using the (special tool #10288, Pliers, Hose Clamp)

    Refer to the appropriate service information .

  12. Install the clean air hose and engine cover. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION .
  13. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to ENGINE OIL AND FILTER CHANGE  .
  14. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  15. Start the engine and check for leaks.
