Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

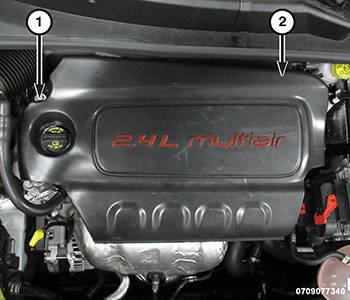

GC0174642Courtesy of CHRYSLER GROUP, LLC
  1. Lubricate the three rubber mount sockets on the engine cover with Mopar® Rubber Bushing Installation Lube.
  2. Align the rubber mount sockets of the engine cover (2) to the three ball studs and press firmly downwards.
  3. Install the bolt (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
