Removal - Intermediate Fuel Delivery Line - 2.4L

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the cover of the Power Distribution Center (PDC) in the engine compartment and remove the fuel pump fuse (F21 - 15 ampere).
  2. Start the engine and run until the fuel in the lines is depleted.
  3. Reinstall the fuel pump fuse (F21 - 15 ampere) and close the PDC cover.
  4. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  5. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  6. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  7. Remove the side belly pan. Refer to BELLY PAN, SIDE, REMOVAL .
    GC0163582Courtesy of CHRYSLER GROUP, LLC
  8. Remove the fastener (1) from the clean air hose which goes between the air cleaner body cover and the throttle body.
  9. Disconnect the engine oil vapor hose quick coupling (2).
  10. Loosen the clamp (3) and disconnect the clean air hose (3) from the air cleaner body cover.
    GC0163175Courtesy of CHRYSLER GROUP, LLC
  11. Disconnect the wire harness connector (1) from the inlet air temperature sensor.
  12. Loosen the clamp (2) and remove the clean air hose (2).

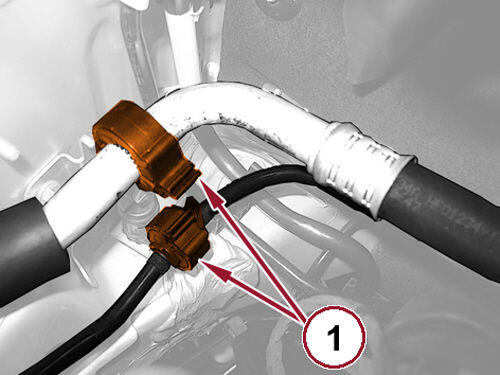

    GC0164318Courtesy of CHRYSLER GROUP, LLC
  13. Release the A/C suction and liquid lines from the retainers (1).

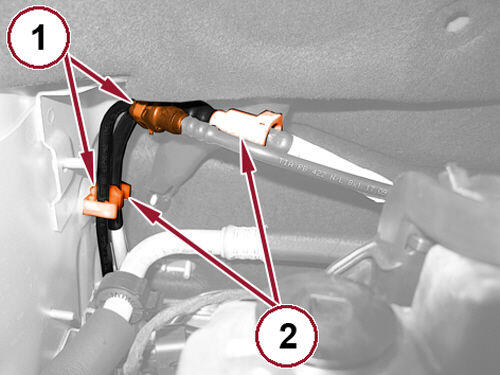

    GC0162997Courtesy of CHRYSLER GROUP, LLC
  14. Disconnect the quick couplings (1 and 2) for the right end of the front fuel delivery and vapor lines. Release the lines from the upper and lower retaining clips.

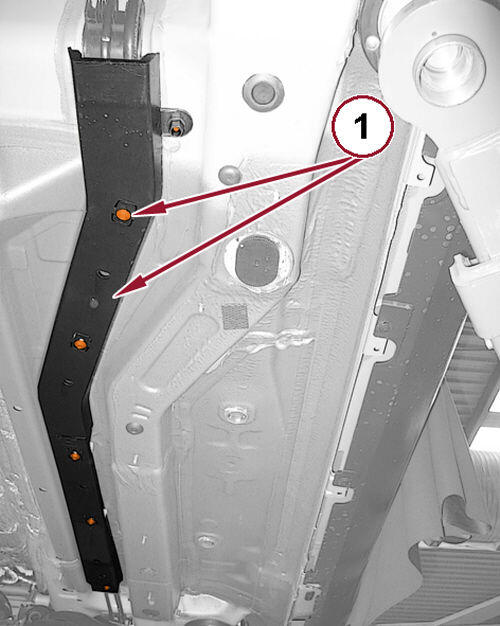

    GC0164478Courtesy of CHRYSLER GROUP, LLC
  15. Remove the fasteners (1) and remove the front and rear fuel line shields.

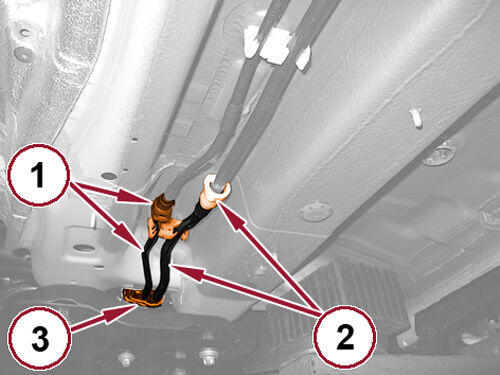

    GC0165391Courtesy of CHRYSLER GROUP, LLC
  16. Disconnect the quick coupling (2) and disengage the intermediate fuel delivery line (2) from the rear retaining clip.
  17. Disconnect the quick coupling (1) and disengage the intermediate fuel vapor line (1) from the rear retaining clip.

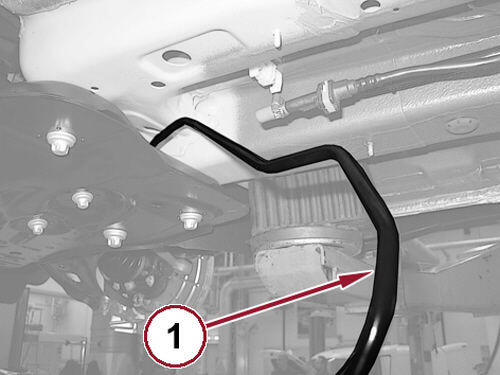

    GC0166144Courtesy of CHRYSLER GROUP, LLC
  18. Disengage the intermediate fuel delivery and vapor lines (1) from the front retaining clip and remove them from the vehicle.
