Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

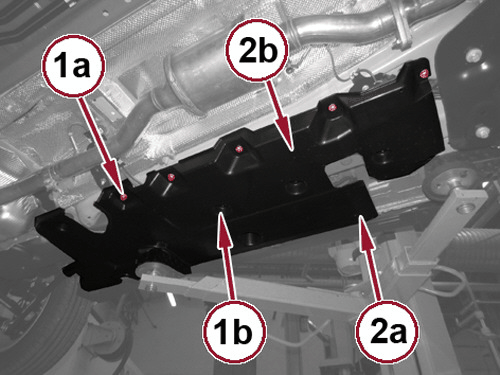

REMOVAL - LEFT SIDE
- Raise and support the vehicle
Refer to HOISTING, STANDARD PROCEDURE .
- Remove the screws (1a) and the nuts (1b) attaching the underbody side belly pan.
- Release the retainers (2a) using the appropriate tool and remove the underbody side belly pan (2b).

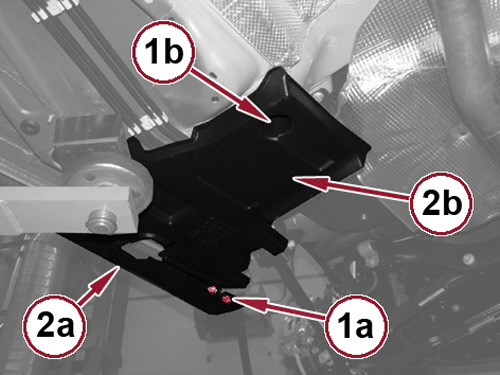

REMOVAL - RIGHT SIDE
- Raise and support the vehicle
Refer to HOISTING, STANDARD PROCEDURE .
- Remove the screws (1a) and the nuts (1b) attaching the underbody side belly pan.
- Release the retainers (2a) using the appropriate tool and remove the underbody side belly pan (2b).
