Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Perform the fuel pressure release procedure. Refer to FUEL SYSTEM PRESSURE RELEASE .
- Remove the muffler assembly. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
- Remove the propeller shaft assembly .
- Remove the right side belly pan. Refer to BELLY PAN, SIDE, REMOVAL .
- Remove the rear seat cushion. Refer to SEAT CUSHION, REMOVAL
.
- Lift the cover, remove the screws and the access cover to the fuel pump (1).
- Disconnect the wire harness connector (1) from the electric pump fuel.
- Disconnect the fuel vapor quick connect couplings (3).
- Disconnect the quick coupling of the fuel delivery pipe (2).

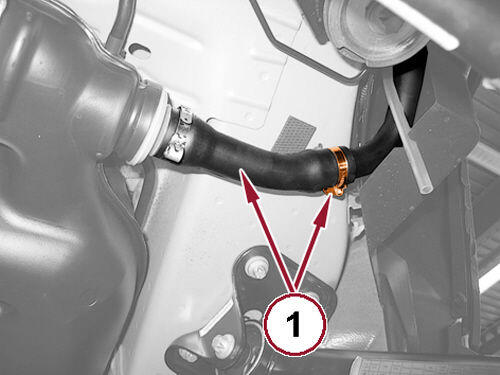

- Loosen the clamp and remove the hose from the fuel fill tube (1).

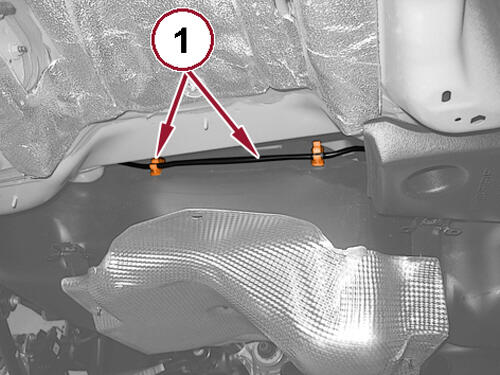

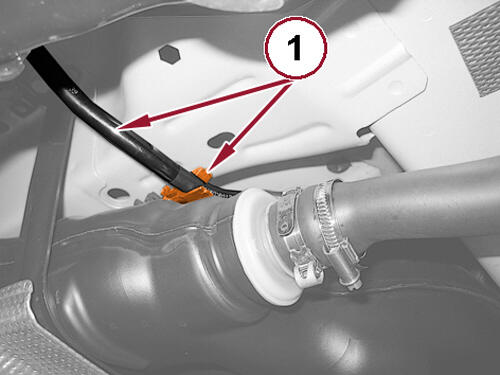

- Disengage the fuel vapor hose from the retaining clips (1).

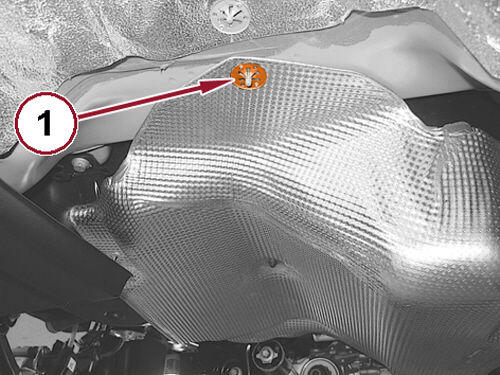

- Unscrew the toothed washer (1) securing the heat shield to the body.

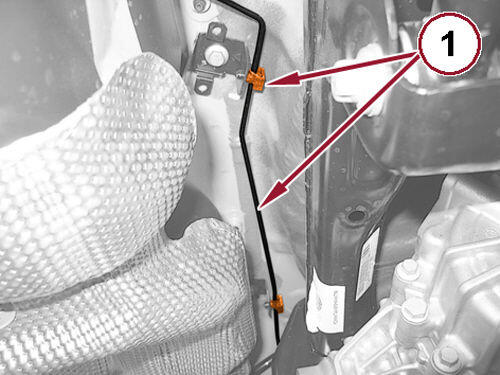

- Open the retaining clips and disengage the rear brake lines (1).

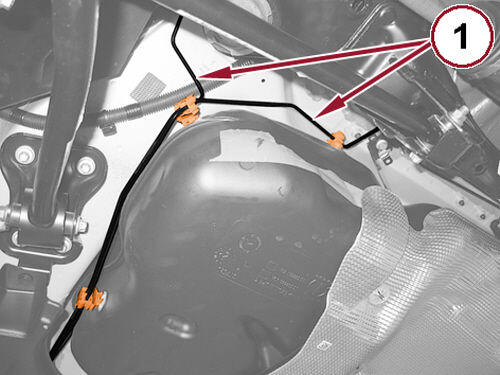

- Open the clips and release the right rear brake line (1).

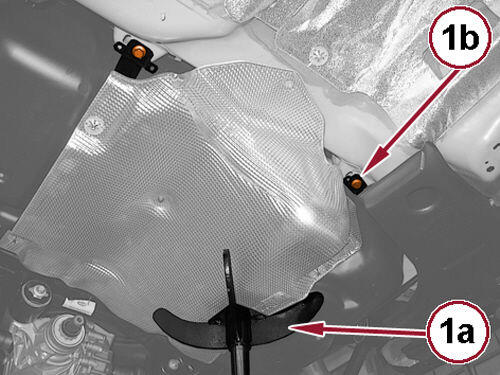

- Place a suitable hydraulic lift (1a) under the tank and remove the front bolts (1b) securing the mounting brackets.

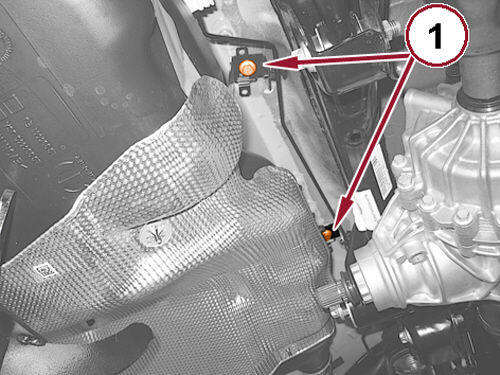

- Remove the rear fuel tank support bracket bolts (1).
- Disconnect the quick coupling of the vapor hose from the fuel tank to the canister.
- Lower the tank and unhook the fuel delivery pipe from the retaining clips (1).

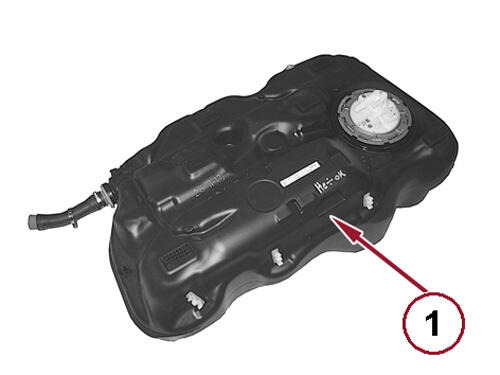

- Lower the support and remove the fuel tank (1).

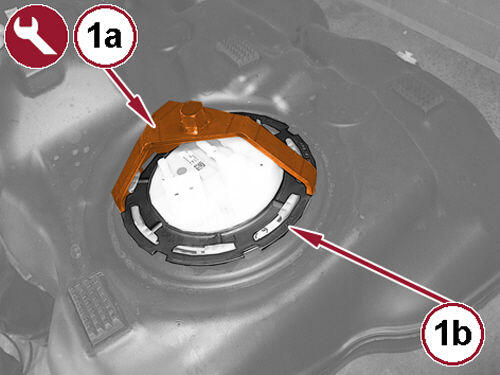

- Install the 2000002100 (EMEA) or (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (NAFTA) tool (1a) and remove the lock nut from the fuel pump assembly (1b).
- Raise the fuel pump assembly.

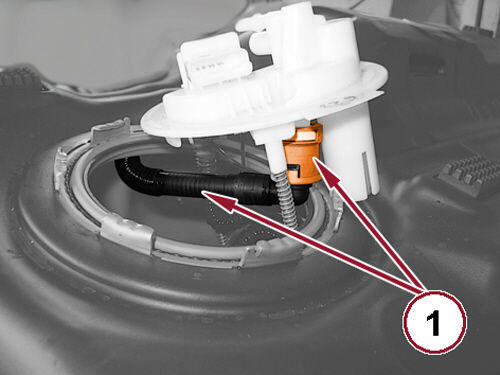

- Disconnect the quick coupling of the fuel vapor recovery pipe (1).

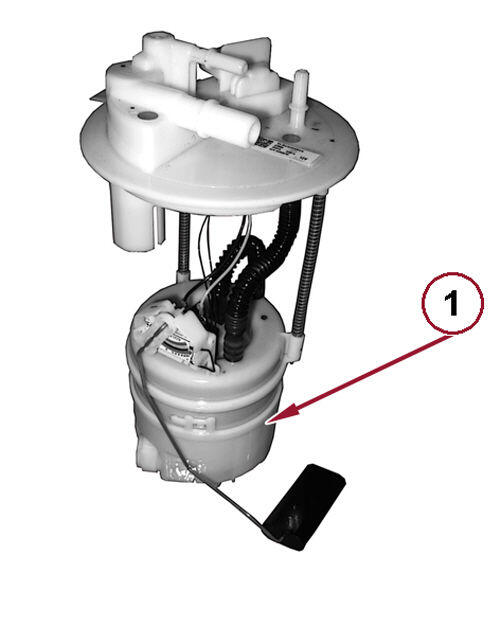

- Remove the fuel pump assembly (1).

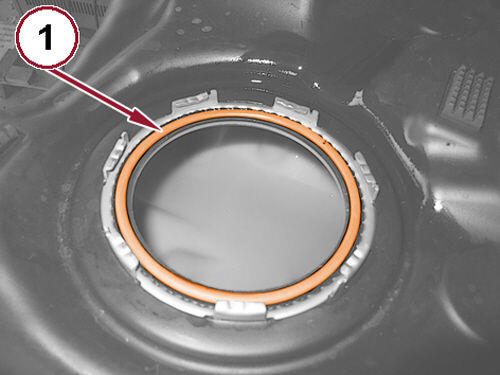

- Remove the seal ring from the tank (1).
