Removal And Installation: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Disconnect and isolate the negative battery cable.
  3. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  4. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL  .
  5. Remove the right engine mount isolator. Refer to INSULATOR, ENGINE MOUNT, RIGHT, REMOVAL AND INSTALLATION  .
  6. Remove the oil filter and drain the engine oil. Refer to FILTER, ENGINE OIL, REMOVAL AND INSTALLATION  .
  7. Drain the engine coolant system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 1.3L .
  8. Remove the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION  .
  9. Remove the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .
  10. Remove the oil pan and oil pump pick-up tube. Refer to PICK-UP, OIL PUMP, REMOVAL AND INSTALLATION  .
  11. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  12. Remove the accessory drive belt tensioner. Refer to TENSIONER, BELT, REMOVAL AND INSTALLATION .
  13. Remove the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
  14. Remove the water pump. Refer to PUMP, WATER, REMOVAL AND INSTALLATION .
  15. Remove the (special tool #2064000090, Locking, Pulley) tool from the timing cover.
    G00594954Courtesy of CHRYSLER GROUP, LLC

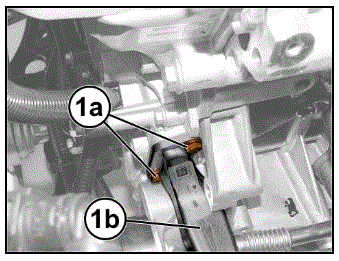

  16. Remove the bolts (1a) and reposition the coolant pump inlet connector (1b).
    GC0208105Courtesy of CHRYSLER GROUP, LLC
  17. Remove the bolts (1a) and reposition the pipe protection duct (1b).
    GC0208104Courtesy of CHRYSLER GROUP, LLC
  18. Disconnect the wire harness connector (1a) from the engine oil pump displacement control solenoid (1b).
    G00594955Courtesy of CHRYSLER GROUP, LLC

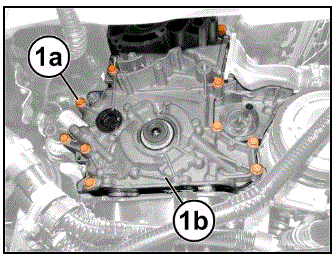

  19. Remove and discard the lower bolts (1a) from the timing cover (1b).
    G00594956Courtesy of CHRYSLER GROUP, LLC

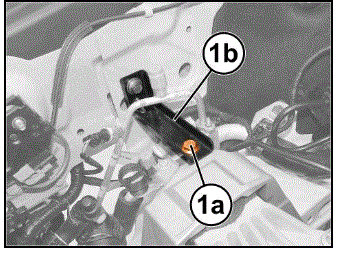

  20. Remove the bolt (1a) from the side reinforcement bracket (1b).
    GC0208101Courtesy of CHRYSLER GROUP, LLC
  21. Remove the retaining studs (1a) and reposition both right and left side linings (1b).
    GC0208100Courtesy of CHRYSLER GROUP, LLC
  22. Position the 2000040436 crossmember (1a) and support the engine crankcase (1b) appropriately.
    GC0188869Courtesy of CHRYSLER GROUP, LLC
  23. Remove the bolts (1a) and remove the right engine mount insulator (1b).
    GC0189620Courtesy of CHRYSLER GROUP, LLC
  24. Remove the bolt (1) from the intake manifold.
    G00594957Courtesy of CHRYSLER GROUP, LLC

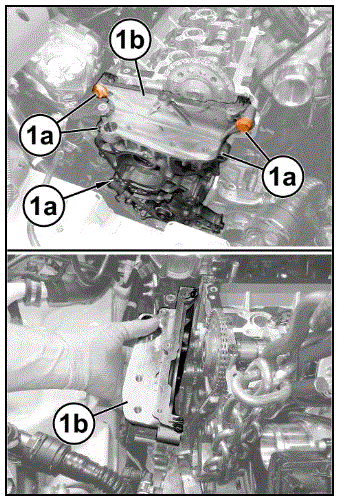

  25. Remove and discard the upper bolts (1a) from the timing cover (1b).
  26. Cut the sealant bead with a suitable tool and remove the timing cover (1b).
    G00594958Courtesy of CHRYSLER GROUP, LLC

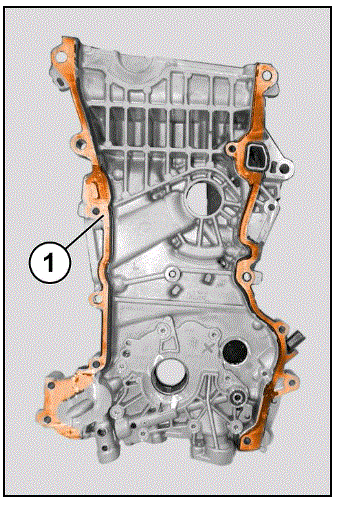

  27. Remove sealant residues (1) and check the integrity of the timing cover locating dowels.
