Tube, Sunroof Drain: Removal: Rear

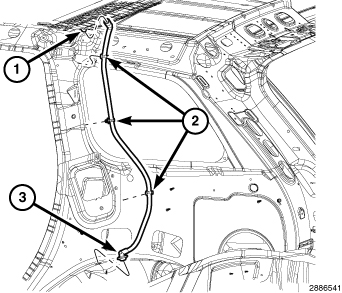

GC0146899Courtesy of CHRYSLER GROUP, LLC
  1. Remove the quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL .
  2. Lower the headliner as necessary to gain access to the drain tube. Refer to HEADLINER, REMOVAL .
  3. Separate the drain tube support clips (2).
  4. Disconnect the drain tube from the floor grommet (3).
  5. Disconnect the tube from the sunroof (1) and remove the tube.
