Glass, Sunroof, Rear: Removal

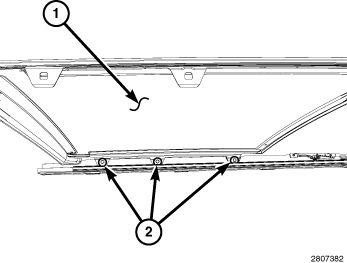

GC0144319Courtesy of CHRYSLER GROUP, LLC
  1. Close the front glass panel and open the sunshade fully.
  2. Remove the sunroof assembly. Refer to SUNROOF, SINGLE PANE, REMOVAL .
  3. Remove the six bolts (2) and remove the glass panel (1).
