Channel, Sunroof Drain: Removal

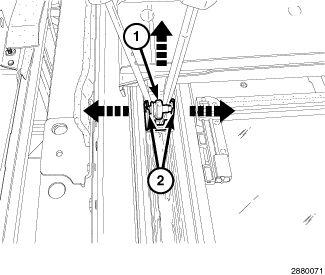

GC0144459Courtesy of CHRYSLER GROUP, LLC
CAUTION:

Vertical uprights (2) located on the channel support should be pried apart using care. If an upright is damaged during service the entire sunroof assembly will need to be replaced.

  1. Remove the front glass panel. Refer to GLASS, SUNROOF, REMOVAL .
  2. Remove each side of the drain channel (1) by prying apart the two vertical uprights (2) on the channel support.
