Glass, Sunroof: Removal

  1. Move the glass panel to the vent position.
  2. Slide sunshade rearward to the open position.
  3. Remove the mechanism cover. Refer to COVER, SUNROOF MECHANISM, REMOVAL .
    GC0144340Courtesy of CHRYSLER GROUP, LLC
  4. Remove the six glass panel fasteners (1), three per side.
    GC0144341Courtesy of CHRYSLER GROUP, LLC

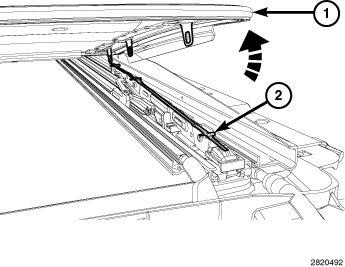

  5. Lift off glass panel (1) and remove from the vehicle.
