Fender, Front: Removal

Using a grease pencil, mark the location of the fender.
Remove wheel and tire assembly if necessary.
Remove wheel liner as needed (2). Refer to SHIELD, SPLASH, WHEELHOUSE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove front fascia assembly. Refer to FASCIA, FRONT, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

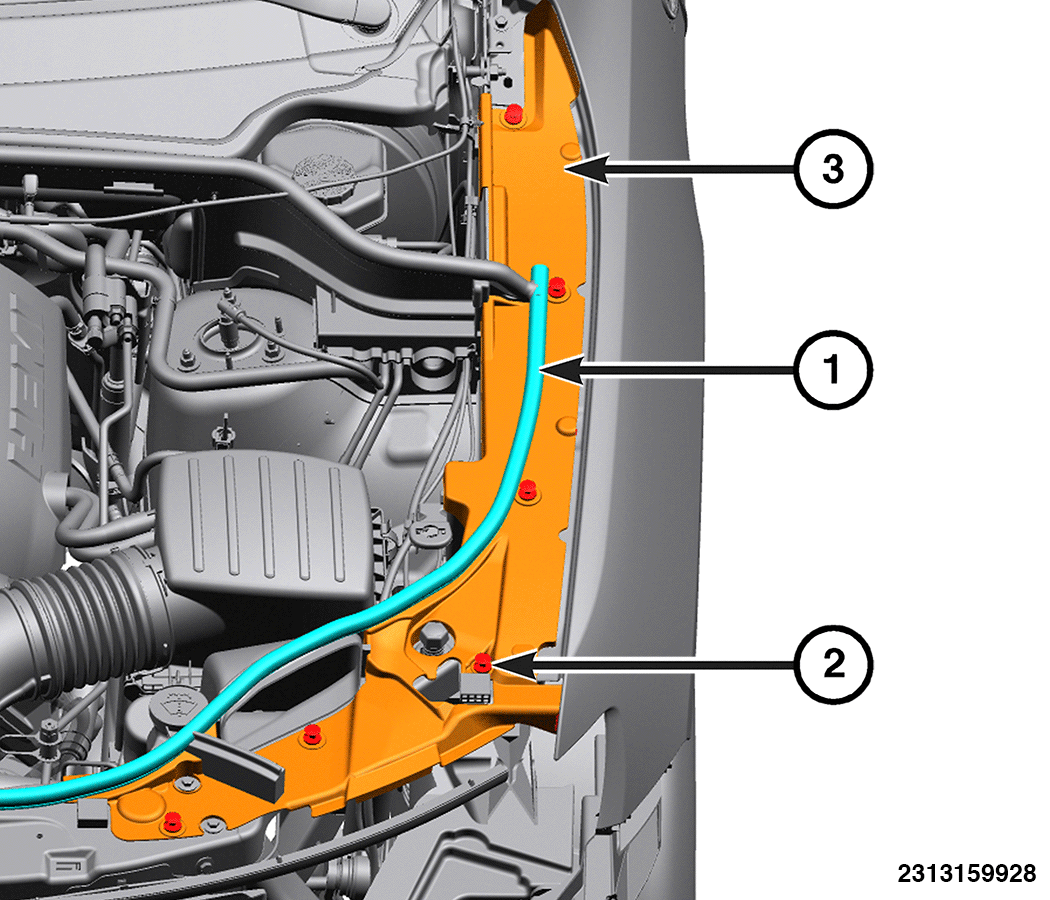

Remove the weatherstrip (1). Remove the fasteners (2) and remove the upper closeout (3).

Courtesy of CHRYSLER GROUP, LLC

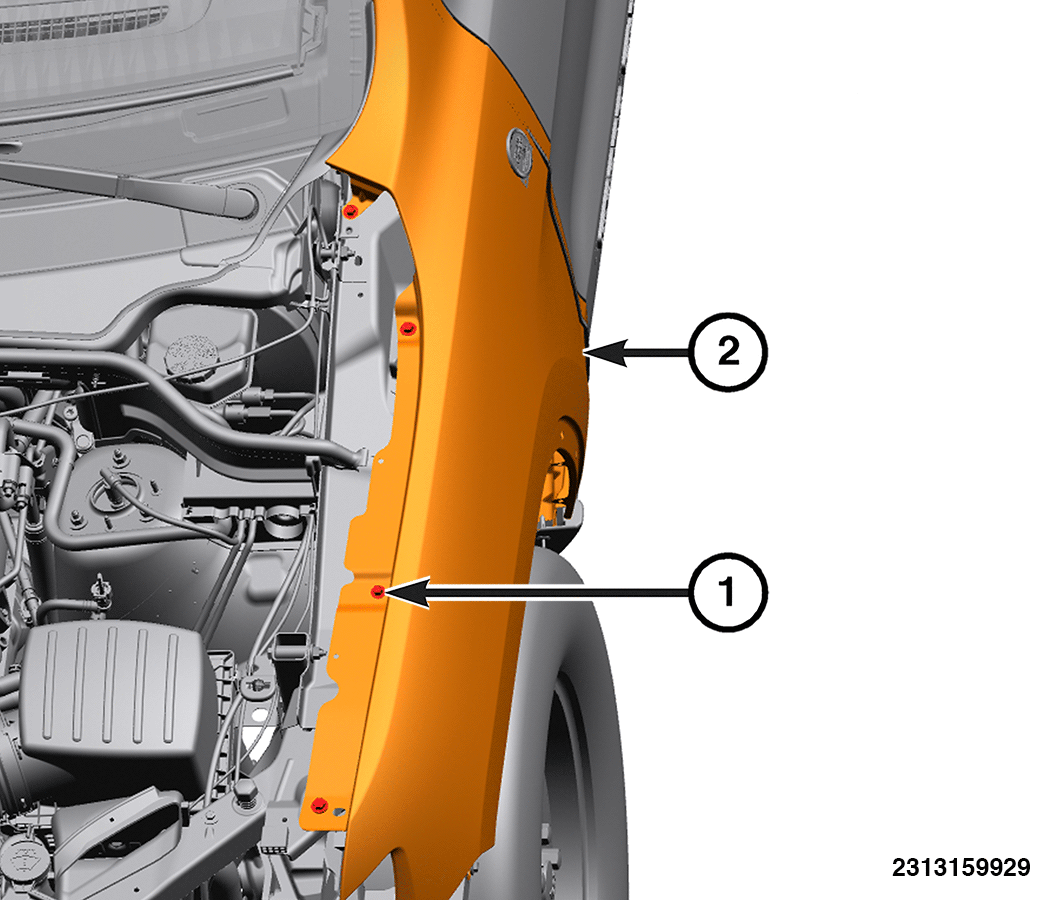

Remove the upper fasteners (1) from the top of the fender (2).
Raise and support the vehicle.
Remove the lower rocker sill cladding as needed. Refer to CLADDING, BODY, SILL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

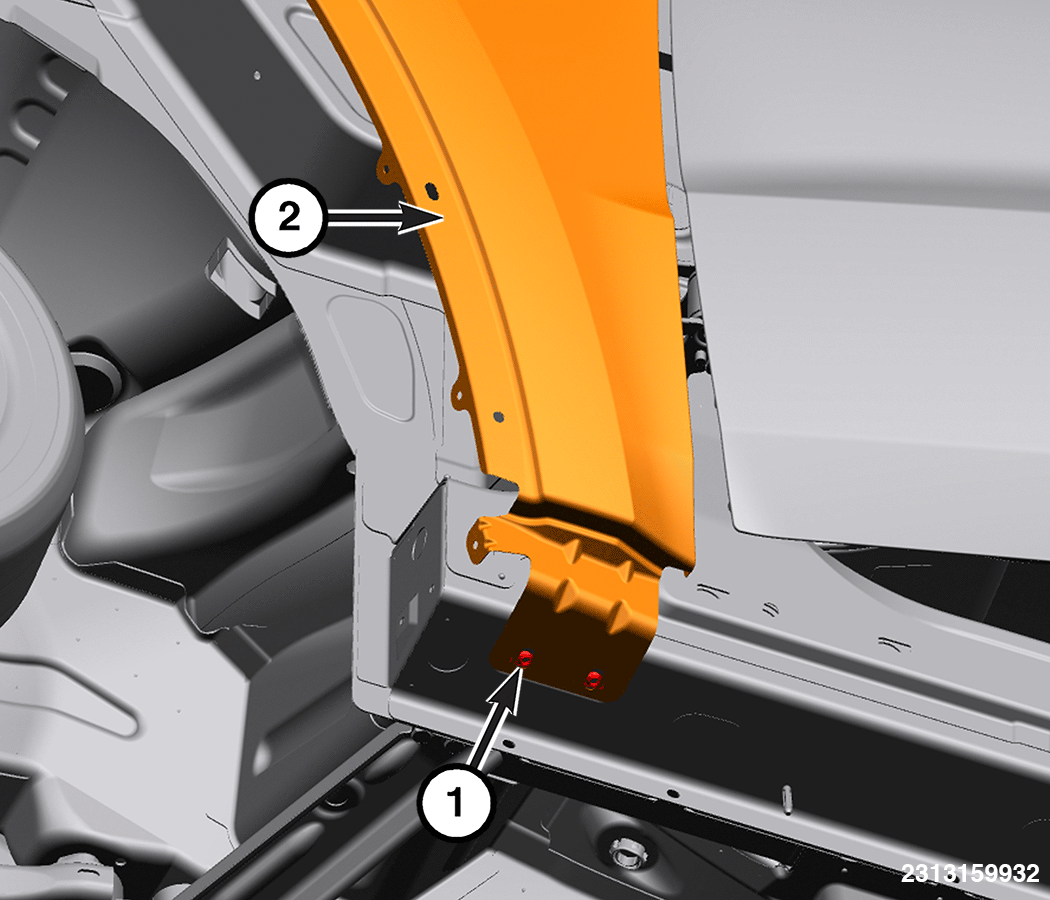

Remove rear lower fasteners (1).

Courtesy of CHRYSLER GROUP, LLC

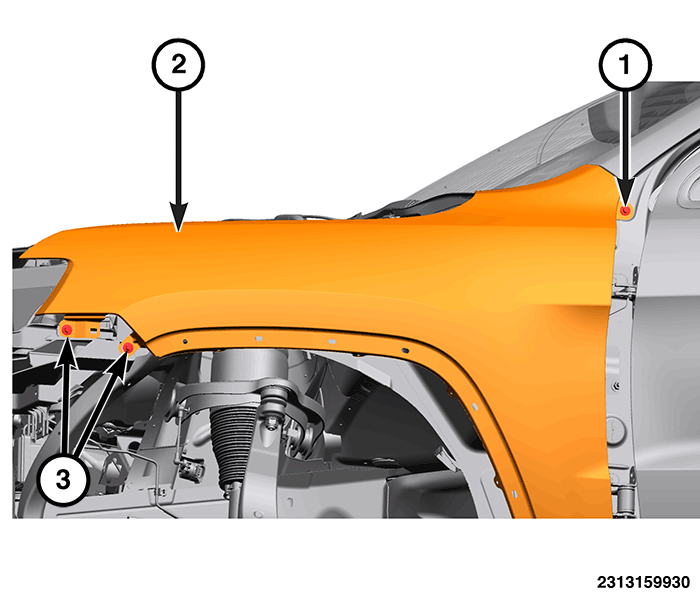

Remove the fender fastener (1) in the door jam opening.
Remove the fender fasteners (3) at the front of fender (2).

Courtesy of CHRYSLER GROUP, LLC

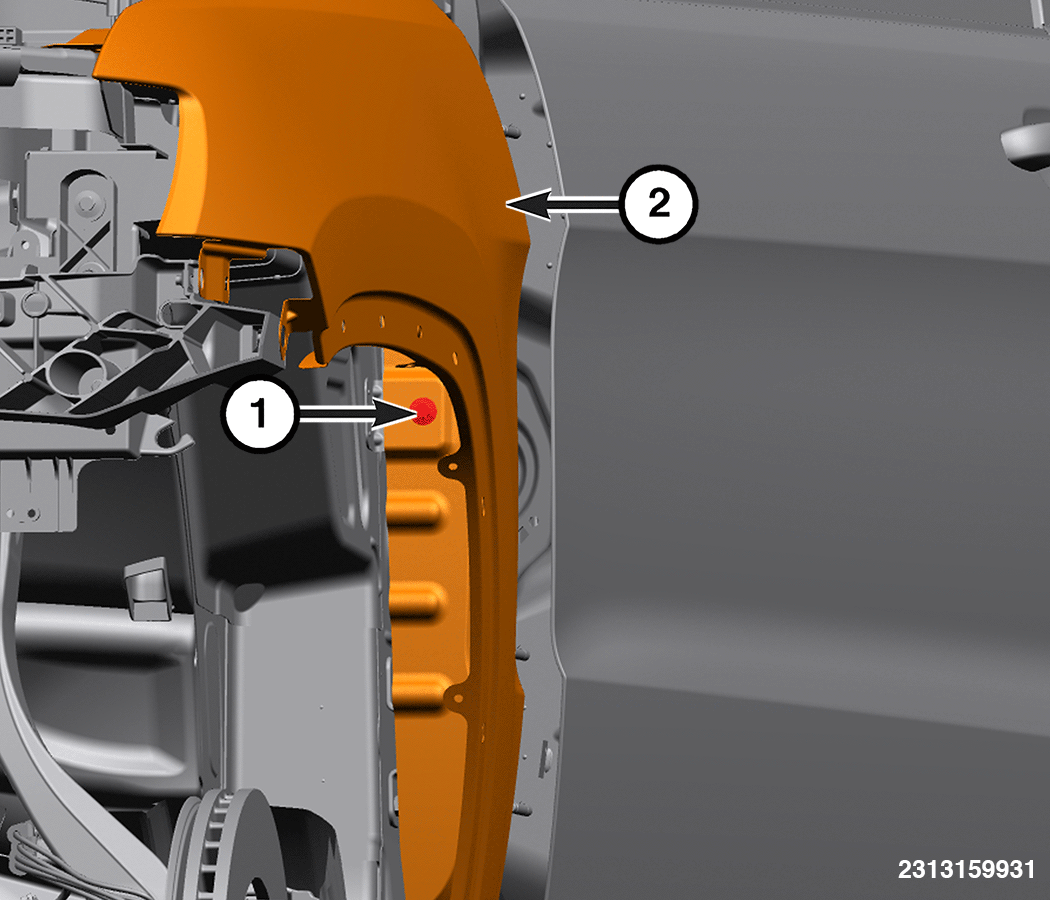

Remove the fender fastener (1) located at the rear side of the front wheelhouse.
Remove the fender (2) from vehicle.
