Cladding, Body, Sill: Removal

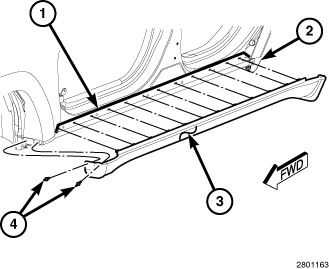

GC0146880Courtesy of CHRYSLER GROUP, LLC
  1. If needed, remove the front and rear wheel and tire assemblies.
  2. Drill out the rivets (4) at the front and rear wheel opening.
  3. Remove the fastener at the rear wheel well opening (2) that secures the sill cladding (3) to the body.
  4. Drill out the rivets along the bottom, that attach the cladding to the body.
  5. Using a trim stick, gently pry the cladding away from the body and release the clips (1) along the front and rear door openings.
  6. Remove the cladding from the vehicle.
