Lamp Bar, Exterior Handle: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the liftgate tail lamp units. Refer to LAMP, TAIL STOP TURN, REMOVAL .
Remove the pinch sensors from both side of liftgate. Refer to SENSOR, PINCH, REMOVAL .

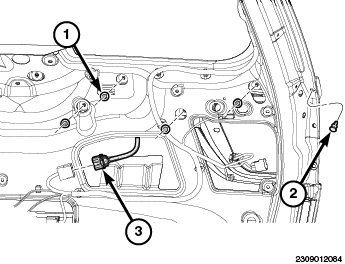

Remove the outer push pin fasteners (2) on both side of the liftgate.
Disconnect wire harness connector (3).
Remove the eight (1) nuts from the back of the lamp bar.

Courtesy of CHRYSLER GROUP, LLC

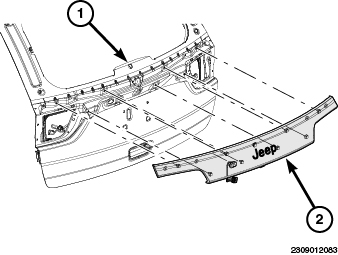

Using pliers, squeeze the retaining clip at the top-center of the lamp bar (2) and release it from the liftgate (1).
Remove the wire harness grommet from the liftgate and remove the lamp bar.
