Rear Wheel Drive

WARNING: This page is about a different variant/trim than selected.
CAUTION:

The seal must be installed flush with the case. Driving the seal deeper could damage the seal causing a leak.

  1. Position the new output shaft seal over the output shaft and against the transmission case.
  2. Using (special tool #8481, Installer, Gear) install the output shaft seal.
  3. Verify that the transmission is in PARK in order to prepare for the installation of the output shaft nut.

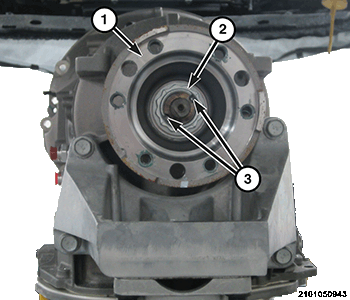

    GC0169779Courtesy of CHRYSLER GROUP, LLC
  4. Install the drive shaft flange (1) onto the output shaft and install a NEW  flange nut (2). Tighten the nut, with a 34 mm 12 point socket, to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  5. Stake (3) the nut.
  6. Install the drive shaft. Refer to SHAFT, DRIVE, REAR, INSTALLATION .
  7. Perform the CHECK OIL LEVEL procedure. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
