Cable, Manual Park Release: Removal: Upper

WARNING: This page is about a different variant/trim than selected.
NOTE:

Before center console is removed, the upper and lower Mechanical Park Release (MPR) cables must be released from each other.

  1. Remove the center floor console. Refer to CONSOLE, FLOOR, REMOVAL .

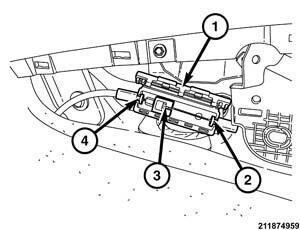

    GC0158443Courtesy of CHRYSLER GROUP, LLC
  2. Open the Manual Park Release (MPR) junction cover (1).
  3. Unclip the lower (4) part of the cable from the junction.
  4. Release the upper and lower cables (3) from each other.
  5. Remove the center console from the vehicle.
  6. Remove the rear trim bezel from the center console.
    GC0158397Courtesy of CHRYSLER GROUP, LLC
  7. Remove the clips from the duct and remove the center console rear duct tube.
  8. From under the center console, release the clip holding the MPR cable.

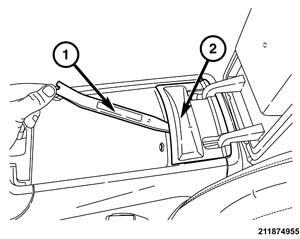

    GC0158364Courtesy of CHRYSLER GROUP, LLC
  9. Remove the MPR cover.

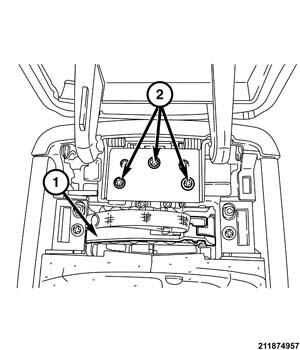

    GC0158392Courtesy of CHRYSLER GROUP, LLC
  10. Remove the three console lid screws (2) and remove the center console lid.

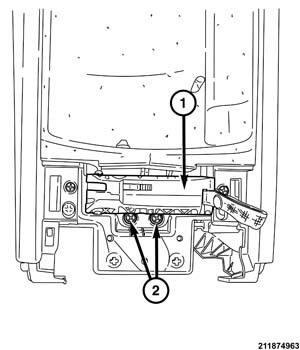

    GC0158401Courtesy of CHRYSLER GROUP, LLC
  11. Remove the two screws (2) holding the MPR lever.

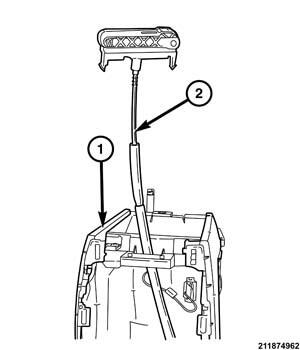

    GC0158395Courtesy of CHRYSLER GROUP, LLC
  12. Unclip the MPR lever from the center console (1) and pull the cable (2) through.
