Console, Floor: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the shift bezel. Refer to BEZEL, SHIFTER, REMOVAL .
Place the seats into the full forward positions.

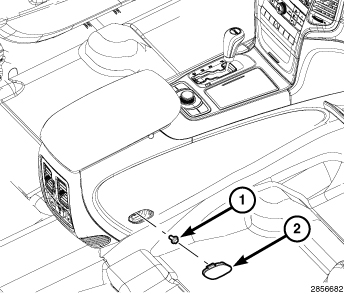

Remove the screw covers (2) and remove the screws (1).

Courtesy of CHRYSLER GROUP, LLC
Place the seats into the full rearward position.

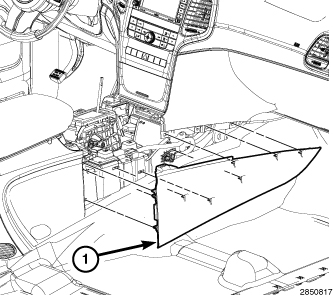

Using trim stick or equivalent, release the clip fasteners and separate the side covers (1).

Courtesy of CHRYSLER GROUP, LLC

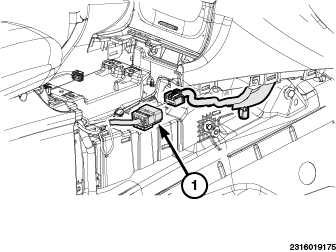

Disconnect the shifter electrical connectors (1).

Courtesy of CHRYSLER GROUP, LLC

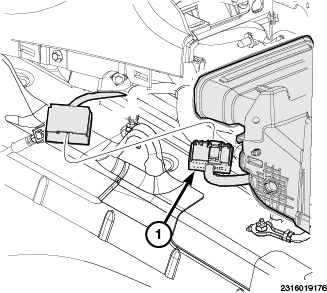

Disconnect the front electrical connector (1).

Courtesy of CHRYSLER GROUP, LLC

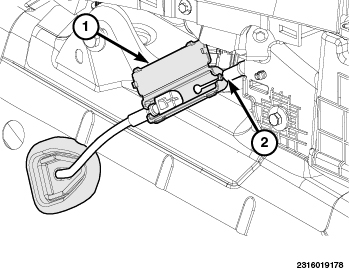

Open the cable connector box lid (1) and disconnect the shifter cable (2).

Courtesy of CHRYSLER GROUP, LLC

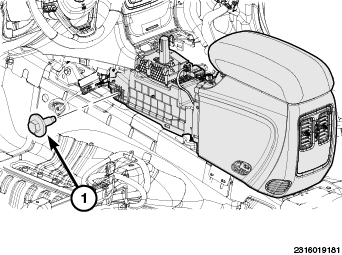

Remove the front screws (1).

Courtesy of CHRYSLER GROUP, LLC

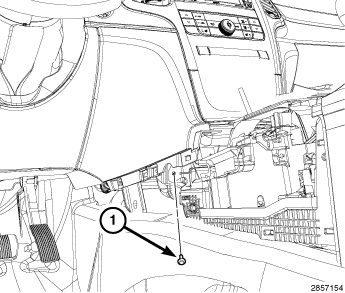

Remove the side screws (1).

Courtesy of CHRYSLER GROUP, LLC

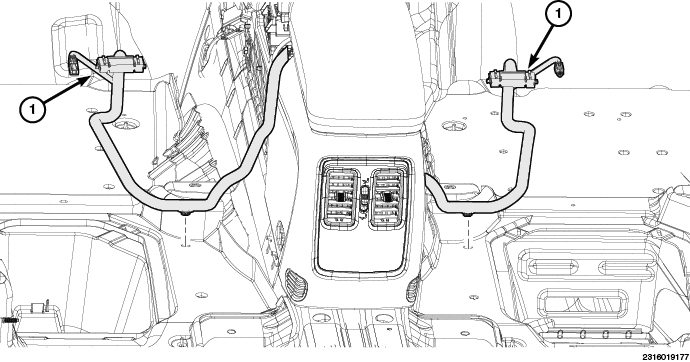

From under the seats disconnect the seat electrical connectors (1), if equipped, and pull the harness from under the carpet.

Courtesy of CHRYSLER GROUP, LLC

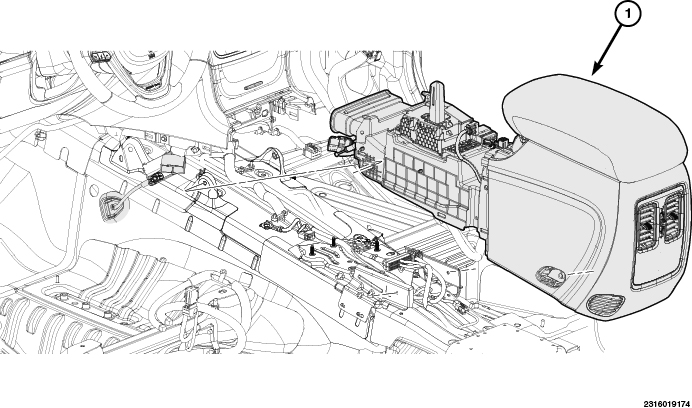

Remove the floor console (1).
