Valve, Bypass: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect and isolate the negative battery cable.
Remove the cowl cover panel. Refer to COVER, COWL PANEL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the engine covers (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the fuel purge hose (2) from the top of the supercharger nose (1).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the bypass valve wire harness connector (3).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the wire harness connector (2) from the intermediate TMAP sensor (1).

Courtesy of CHRYSLER GROUP, LLC
Wipe down the lid, rotor case, inlet nose, fuel rail and water manifold before removing the lid.
Remove the supercharger to cylinder head retaining bolts, starting with number ten, going backwards to number one.

Courtesy of CHRYSLER GROUP, LLC
Remove the five long lid retaining screws (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the sixteen short lid retaining screws (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the lid, using the tab on the rear of the supercharger (1) and discard the lid gasket.
NOTE:
The six cooler retention seals must remain with the lid.
Place the lid, upside down on a clean a dry surface.

Courtesy of CHRYSLER GROUP, LLC

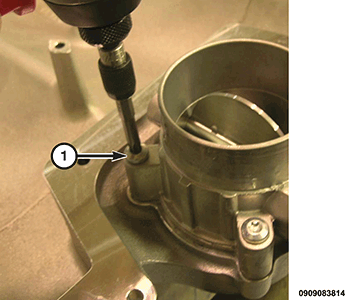

Remove the bypass retaining screws (1).

Courtesy of CHRYSLER GROUP, LLC
Remove and discard the bypass seal.

Courtesy of CHRYSLER GROUP, LLC

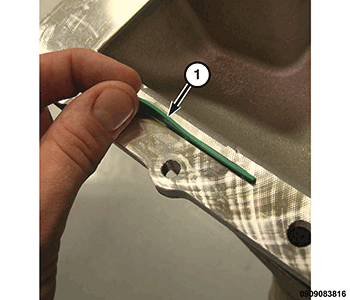

Inspect the cooler retention seals (1) for damage and discard if necessary.
