Cover, Cowl Panel: Removal

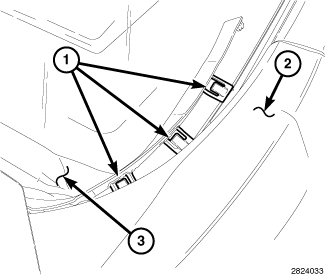

GC0146886Courtesy of CHRYSLER GROUP, LLC
  1. Release the tabs (1) at the top of the fender (2) that secure the cowl cover panel (3) to both the left and right fenders.
  2. Remove wiper arms. Refer to ARM, WIPER, REMOVAL .

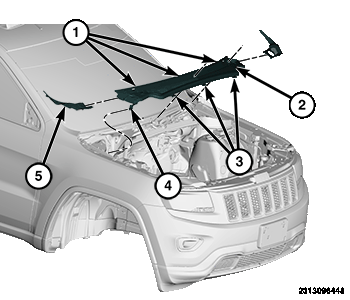

    GC0174047Courtesy of CHRYSLER GROUP, LLC
  3. Open the hood and remove hood seal along the front edge of the cowl cover panel (2), revealing the three forward edge retaining tabs (3).
  4. Lift the forward edge of the panel.
  5. Starting at one side, pull the side guide pin (4) from the inner apron and lift the cowl cover upward and forward to release the clips (1) along the vehicles windshield.
  6. Remove cowl cover from the vehicle.
  7. If necessary, separate the side pieces (5) from the main cowl cover (2).
