TENSIONER, Drive Belt: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .

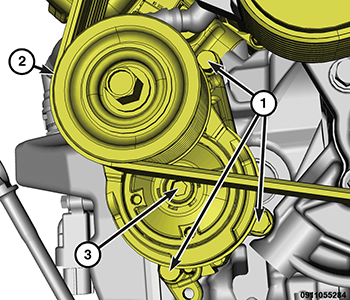

    GC0170486Courtesy of CHRYSLER GROUP, LLC
  2. Remove the supercharger drive belt (2). Refer to BELT, DRIVE, REMOVAL .
  3. Remove belt tensioner retaining bolt (3) and the belt tensioner.
  4. If necessary, remove the three mounting bracket bolts (1) and remove the bracket.
