Belt, Drive: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .

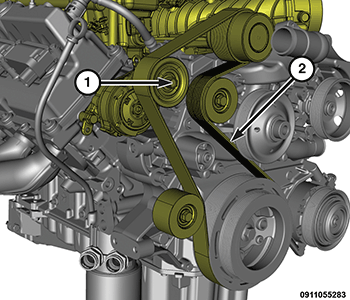

    GC0170495Courtesy of CHRYSLER GROUP, LLC
  2. Release the belt tension by rotating the tensioner (1) clockwise  . Rotate the belt tensioner until the belt (2) can be removed from pulleys.
  3. Remove the belt.
  4. Gently release the tensioner.
