Pulley, Idler: Installation: Upper

WARNING: This page is about a different variant/trim than selected.

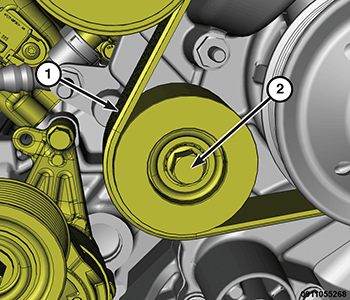

GC0170126Courtesy of CHRYSLER GROUP, LLC
  1. Using a NEW  bolt (1) coated with red loctite®, install the idler pulley and tighten the retaining bolt (2) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  2. Install the supercharger drive belt (1). Refer to BELT, DRIVE, INSTALLATION .
  3. Install the accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
