Cylinder Head: Installation

WARNING: This page is about a different variant/trim than selected.

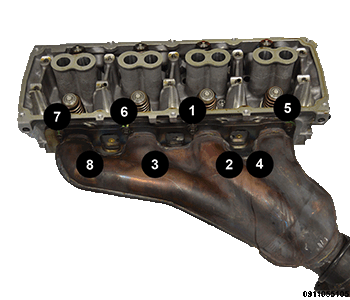

GC0170412Courtesy of CHRYSLER GROUP, LLC
NOTE:

Left side shown in the illustration, right side similar.

  1. If removed, using a new exhaust manifold gasket, position the exhaust manifold and install the retaining bolts finger tight.
  2. Using the sequence shown in the illustration in the illustration, tighten the exhaust manifold retaining bolts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
    NOTE:

    The cylinder head gaskets are not interchangeable between left and right sides. They are marked "T" for top, "B" for bottom, "L" for left side and "R" for right side.

  3. Clean all sealing surfaces of the engine block and the cylinder head(s) (2).
    NOTE:

    Rotate crankshaft 45° so that all pistons are 1/2 the way down the cylinder bore to avoid piston to valve contact.

  4. Position the new cylinder head gasket(s) (1) onto the engine block.
  5. Position the cylinder head(s) (2) onto the engine block.
  6. Install the cylinder head bolts finger tight.
    Fig 1: Cylinder Head Bolt Tightening Sequence
    GC0088039Courtesy of CHRYSLER GROUP, LLC
  7. Using the sequence below, tighten the retaining bolts.
    1. Using the sequence shown in the illustration in the illustration, tighten bolts 1-10 to 34 N.m (25 ft. lbs.).
    2. Using the sequence shown in the illustration in the illustration, tighten bolts 11-15 to 20 N.m (15 ft. lbs.).
    3. Using the sequence shown in the illustration in the illustration, tighten bolts 1-10 to 54 N.m (40 ft. lbs.).
    4. Using the sequence shown in the illustration in the illustration, verify bolts 11-15 are 20 N.m (15 ft. lbs.).
    5. Using the sequence shown in the illustration in the illustration, tighten bolts 1-10 to 61 N.m (45 ft. lbs.).
    6. Using the sequence shown in the illustration in the illustration, verify bolts 11-15 are 20 N.m (15 ft. lbs.).
    7. Using the sequence shown in the illustration in the illustration, rotate bolts 1-10 90 degrees
    8. Using the sequence shown in the illustration in the illustration, tighten bolts 11-15 to 34 N.m (25 ft. lbs.).
  8. Install the push rods and rocker arms. Refer to ROCKER ARM, VALVE, INSTALLATION .
  9. If removed, install the idler pulley and bracket. Refer to PULLEY, IDLER, INSTALLATION .
  10. If removed, install the supercharger belt tensioner. Refer to TENSIONER, DRIVE BELT, INSTALLATION .
  11. Install the catalytic converters. Refer to CONVERTER, CATALYTIC, INSTALLATION .
  12. Lower the vehicle.
  13. Install the supercharger assembly. Refer to SUPERCHARGER, INSTALLATION .
  14. Fill cooling system. Refer to STANDARD PROCEDURE .
    NOTE:

    Evacuating or purging air from the charge air cooling system must be done with the use of a pressurized air operated vacuum generator.

  15. Connect the negative battery cable.
  16. Start engine check for leaks.
