Seal, Output Shaft, Rear: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Lubricate all seals with MOPAR® ATF+4 prior to installation.

Courtesy of CHRYSLER GROUP, LLC

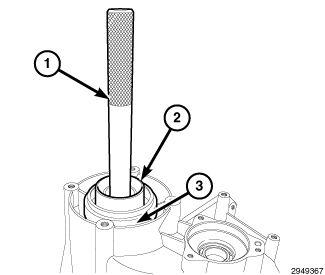

Install a NEW rear output shaft seal into the rear cover with Driver Handle (special tool #C-4171, Driver Handle, Universal) and inverted Installer (special tool #C-4210, Installer, Seal).

Courtesy of CHRYSLER GROUP, LLC

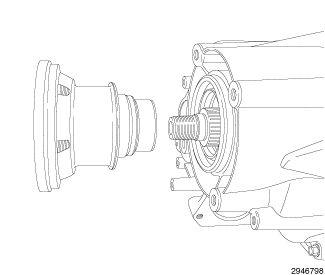

Install the rear output shaft flange onto the output shaft.

Courtesy of CHRYSLER GROUP, LLC

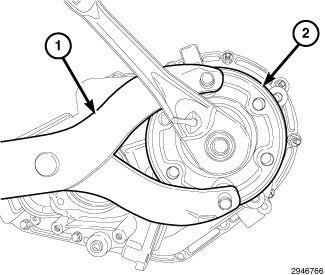

Using Holder (special tool #C-3281, Holder, Flange) (1), install the rear companion flange (2) nut. Tighten the nut to the proper specification
Refer to TORQUE SPECIFICATIONS .
Install the rear propeller shaft. Refer to SHAFT, DRIVE, REAR, INSTALLATION .
Check the transfer case fluid level. Refer to SPECIFICATIONS . Correct as necessary.
