Cooler And Hoses, Charge Air: Removal: Cooler

WARNING: This page is about a different variant/trim than selected.
  1. Remove the radiator crossmember. Refer to CROSSMEMBER, RADIATOR, REMOVAL .
    GC0172143Courtesy of CHRYSLER GROUP, LLC
  2. Loosen the clamp (1) and remove the right side Charge Air Cooler (CAC) hose (2) from the cooler.
    GC0172169Courtesy of CHRYSLER GROUP, LLC
  3. Loosen the clamp (2) and remove the left side CAC hose (1) from the cooler.

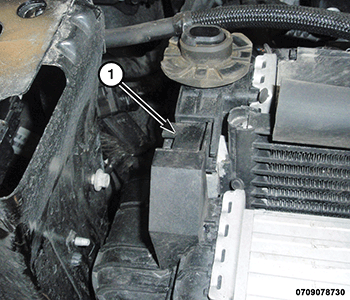

    GC0172155Courtesy of CHRYSLER GROUP, LLC
  4. Release the tab (1) on the right side of the CAC.

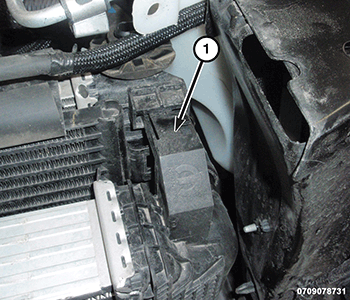

    GC0172163Courtesy of CHRYSLER GROUP, LLC
  5. Release the tab (1) on the left side of the CAC and lift up to remove the cooler.
