Seal, Crankshaft Oil, Rear: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the flex plate (3), counter weight, and tone wheel. Refer to FLEXPLATE, REMOVAL .

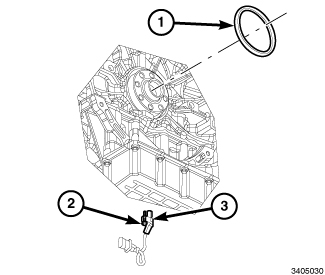

- Remove the bolt (2) and the Crankshaft Position Sensor (CKP) (3).NOTE:
Use care not to damage the rear main oil seal sealing surface.
- Using suitable seal puller, remove the rear crankshaft oil seal (1).
