Seal, Crankshaft Oil, Front: Installation

WARNING: This page is about a different variant/trim than selected.

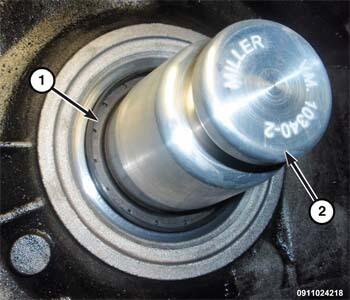

GC0158017Courtesy of CHRYSLER GROUP, LLC
  1. Clean timing chain cover seal surface.
    NOTE:

    Install the front crankshaft oil seal so the lip of seal face away from the engine.

  2. Install the (special tool #VM.10340-1, Guide, Front Seal) (1) and position the front crankshaft oil seal (2) in place.
  3. Remove the (special tool #VM.10340-1, Guide, Front Seal) (1).

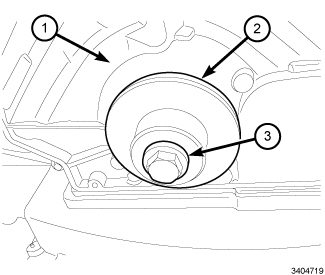

    GC0146773Courtesy of CHRYSLER GROUP, LLC
  4. Using the (special tool #VM.10340-2, Installer Tool, Front Seal) (2), install the front crankshaft oil seal using the vibration damper bolt (3) to draw the seal in place.
  5. Remove bolt (3) and the (special tool #VM.10340-2, Installer Tool, Front Seal) (2).
    GC0146664Courtesy of CHRYSLER GROUP, LLC
  6. Install the vibration damper. Refer to DAMPER, VIBRATION, INSTALLATION .
  7. Connect the negative battery cable.
