Damper, Vibration: Installation

WARNING: This page is about a different variant/trim than selected.
GC0146664Courtesy of CHRYSLER GROUP, LLC
NOTE:

The crankshaft damper bolt is a left hand thread.

  1. Install the vibration damper (2). Tighten the bolt (1) to 100 N.m (74 ft. lbs.) plus an additional 125 degrees turn.
    GC0146589Courtesy of CHRYSLER GROUP, LLC
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove Crankshaft Locking Tool (special tool #VM.10339, Tool, Crankshaft Timing) (1).
    GC0146696Courtesy of CHRYSLER GROUP, LLC
  4. Install engine block plug (1) and tighten to 30 N.m (22 ft. lbs.).
  5. Install the front suspension skid plate. Refer to PLATE, SKID, TRANSFER CASE, INSTALLATION .

    Install the front skid plate. Refer to PLATE, SKID, TRANSFER CASE, INSTALLATION .

  6. Remove the support and lower the vehicle.
    GC0146633Courtesy of CHRYSLER GROUP, LLC
  7. Installed the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
    GC0146792Courtesy of CHRYSLER GROUP, LLC

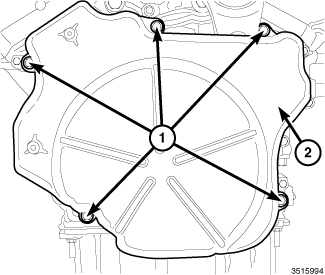

  8. Install the vibration damper cover (2). Tighten the bolts (1) to 11 N.m (8 ft. lbs.).
    GC0146726Courtesy of CHRYSLER GROUP, LLC
  9. Install the charge air resonator (3) and attach the clips (1).
  10. Connect the Charge Air Cooler (CAC) hose to resonator (3).
    GC0146755Courtesy of CHRYSLER GROUP, LLC
  11. Connect the CAC hose (1) to the EGR air flow control valve.
  12. Connect negative battery cable.
