Pump, Vacuum: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
    GC0174046Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine cover (1).
    GC0146780Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (2) and the high pressure pump blocker shield (1) with insulator.
    GC0146740Courtesy of CHRYSLER GROUP, LLC
  4. Remove the high pressure fuel tube support bracket nut (1).
  5. Remove the union nuts (2, 4) and the right fuel tube (3) and discard the fuel tube.
  6. Remove the fuel quantity solenoid and plug the opening. Refer to SOLENOID, FUEL QUANTITY, REMOVAL .
    GC0173478Courtesy of CHRYSLER GROUP, LLC

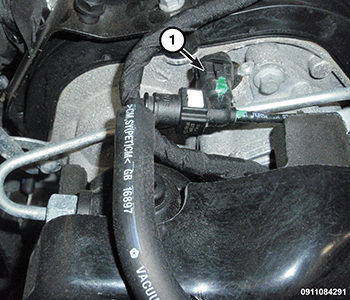

  7. Remove the vacuum line (1) from the vacuum pump.
    GC0146682Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Observe position of driver on rear of pump upon removal.

  8. Remove the bolts (1) and the vacuum pump (2).
