Reservoir, Brake Master Cylinder: Installation
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

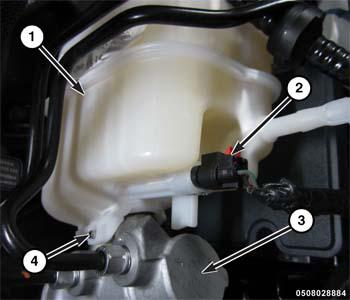

- Install NEW brake master cylinder reservoir sealing grommets in brake master cylinder housing (3).
- Lubricate reservoir mounting area with fresh clean brake fluid. Place reservoir (1) in position over sealing grommets. Seat the brake fluid reservoir into sealing grommets using a rocking motion while firmly pressing down on fluid reservoir. Once installed, make sure the two brake fluid reservoir bolt holes align to the holes in the master cylinder (3).
- Using the appropriate tool, install and tighten the two brake fluid reservoir bolts (4).
- Install the brake master cylinder and brake master cylinder reservoir assembly. Refer to MASTER CYLINDER, BRAKE, INSTALLATION .
