Pump, Windshield Washer: Removal: Headlamp

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

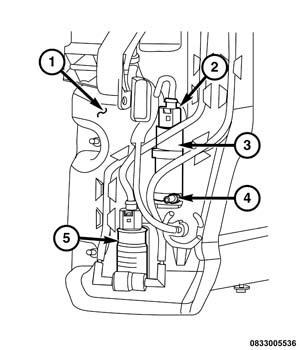

GC0159409Courtesy of CHRYSLER GROUP, LLC
NOTE:

The headlamp washer pump/motor unit may be removed from the washer reservoir without removing the reservoir from the vehicle.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Siphon the washer fluid from the washer reservoir into a clean container for reuse.
  3. Turn the steering wheel to move the front wheels to the full left position.
  4. Raise and support the vehicle.
  5. Remove the plastic push-in fasteners that secure the forward end of the left front wheelhouse splash shield to the inner fender panel and the front fascia. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .
  6. Pull the forward end of the left front wheelhouse splash shield away from the inner fender panel and front fascia far enough to access the headlamp washer pump/motor unit (3) on the outboard side of the washer reservoir (1) on the outboard end of the Front End Module (FEM) hydroform. The headlamp washer pump is above and behind the reversible front and rear washer pump/motor unit (5).
  7. Disconnect the FEM wire harness connector (2) for the headlamp washer pump motor from the motor connector receptacle.
  8. Disconnect the high pressure headlamp washer supply line quick connect fitting from the headlamp washer pump outlet quick connect nipple. Refer to HOSES AND TUBES, WASHER, STANDARD PROCEDURE .
  9. Pull lightly outward on the top of the headlamp washer pump/motor housing away from the washer reservoir to unsnap it from the molded receptacle in the reservoir.
  10. Using hand pressure, firmly grasp and pull the headlamp washer pump upward far enough to disengage the pump inlet nipple from the rubber grommet seal/filter screen in the reservoir. Care must be taken not to damage the reservoir.
  11. Remove the rubber grommet seal/filter screen from the pump mounting hole in the washer reservoir and discard.
