Nozzle, Washer: Removal: Rear

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

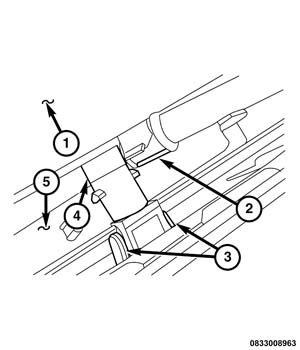

GC0159954Courtesy of CHRYSLER GROUP, LLC
  1. Remove the liftgate spoiler from the top of the liftgate outer panel. Refer to SPOILER, REMOVAL .
  2. From the interior of the spoiler (1), disengage the rear washer hose from the routing clips on the back of the Center High Mounted Stop Lamp (CHMSL) housing (5).
  3. Disconnect the quick-connect fitting (2) of the washer hose from the quick-connect nipple of the rear washer nozzle (4). Refer to HOSES AND TUBES, WASHER, STANDARD PROCEDURE .
  4. From the interior of the spoiler, release the latch features (3) of the rear washer nozzle and push the nozzle out through the mounting hole to the outside of the spoiler.
  5. Remove the rear washer nozzle from the liftgate spoiler.
