Nozzle, Washer: Removal: Headlamp
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Take proper precautions to ensure there is no cosmetic damage done to the paint finish of the headlamp washer nozzle cover or the front fascia during the following procedure.
NOTE:
There are two headlamp washer nozzle configurations available for this vehicle: one for vehicles not equipped with an off-road package, and another for vehicles equipped with an off-road package (shown here). However, the removal and installation procedures for these two nozzle configurations is identical.
- Remove the front fascia from the vehicle. Refer to FASCIA, FRONT, REMOVAL .

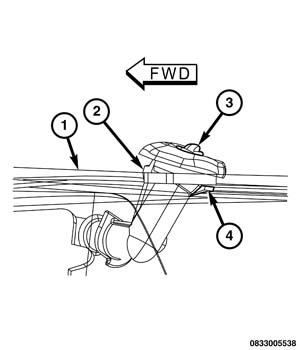

- From the back side of the front fascia (1), disconnect the high pressure hose quick-connect fitting from the quick-connect nipple of the headlamp washer nozzle.
Refer to HOSES AND TUBES, WASHER, STANDARD PROCEDURE .
- From the back side of the front fascia, compress the movable mounting clip (2) of the headlamp washer nozzle (3) tightly against the body of the nozzle.
- With the movable mounting clip fully compressed, tip the body of the nozzle forward far enough to raise the end of the movable clip through the mounting hole of the front fascia.
- Disengage the fixed mounting clip (4) of the nozzle and pull it upward through the mounting hole of the front fascia.
- Remove the headlamp washer nozzle from the front fascia.
