Fascia, Front: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
GC0160073Courtesy of CHRYSLER GROUP, LLC
  1. Open the hood.
  2. Remove the push pin fasteners and remove the radiator closeout panel (1).

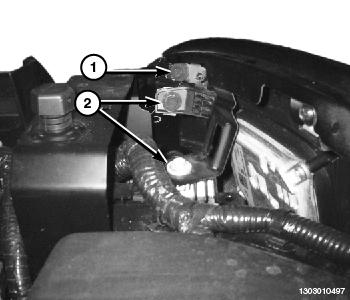

    GC0159283Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fender (1) and fascia bracket fasteners (2).

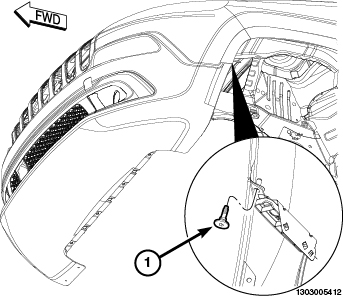

    GC0159892Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  5. Raise and support the vehicle.
  6. Remove the engine belly pan. Refer to BELLY PAN, REMOVAL .
  7. Remove the front wheel flare. Refer to MOLDING, FRONT WHEEL OPENING, REMOVAL .
  8. Accessing from the wheelhouse, remove the fender to fascia fastener (1). Repeat for the opposite side.

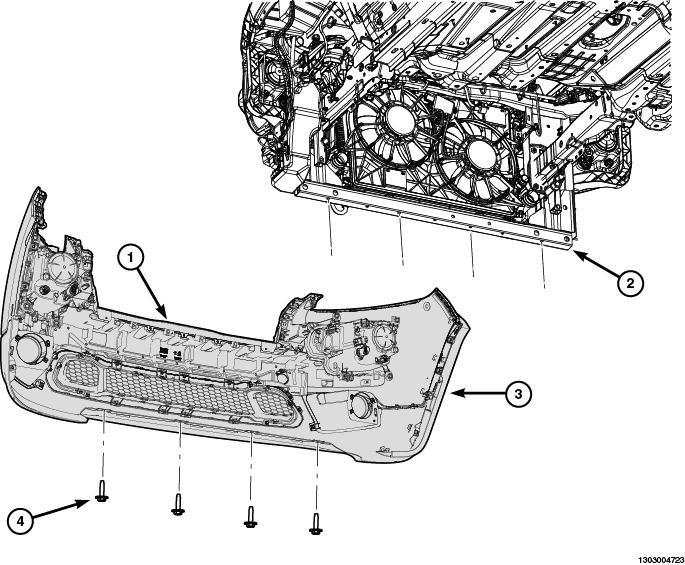

    GC0160061Courtesy of CHRYSLER GROUP, LLC
  9. Remove the lower fasteners (4).

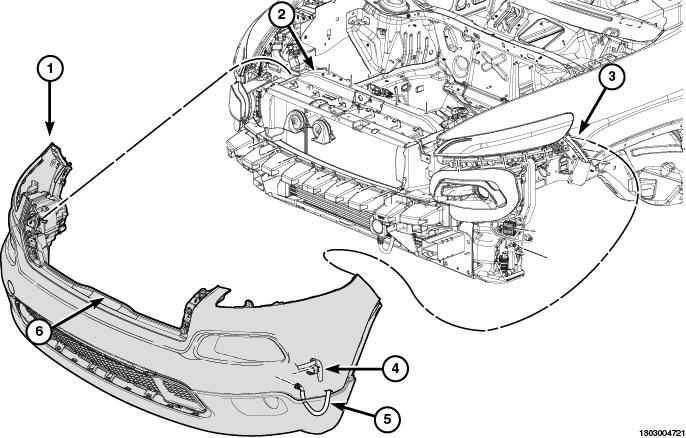

    GC0159982Courtesy of CHRYSLER GROUP, LLC
  10. Remove the two fascia to upper radiator support push pins (1) located above the headlamp. Repeat on the opposite side.
  11. Carefully pull out on the upper and lower fascia sides (3, 6) to disengage the fascia retaining tabs. Repeat on the opposite side.
  12. Disconnect all necessary electrical connectors.
  13. Remove the fascia (1) from the vehicle.
