Rear Door

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the rear door trim panel. Refer to PANEL, REAR DOOR TRIM, REMOVAL .

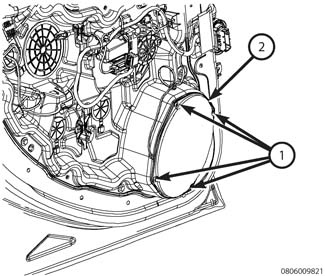

    GC0159834Courtesy of CHRYSLER GROUP, LLC
  3. Remove the screws (1).
  4. Remove the speaker from door (2).
  5. Disconnect wire harness connector from the speaker.
