Front Door

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the front door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .

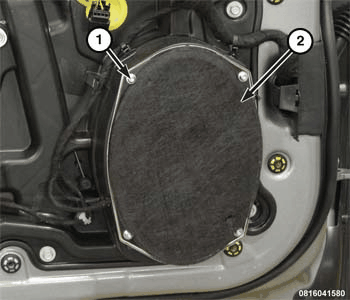

    GC0162326Courtesy of CHRYSLER GROUP, LLC
  3. Remove the four screws (1) from the speaker (2).
  4. Remove the speaker from the door.

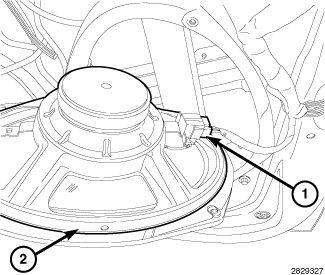

    GC0145471Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the wire harness connector (1) from the speaker (2).
