Section 61 (Audio/Video/Entertainment/Connectivity (Service Information)): Amplifier: Removal

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .

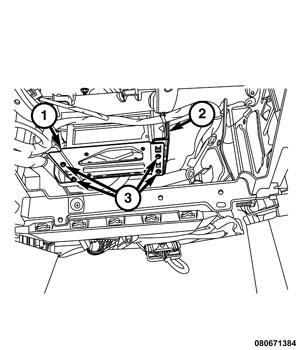

    GC0156418Courtesy of CHRYSLER GROUP, LLC
  3. If equipped, remove the automatic headlamp leveling module. Refer to MODULE, HEADLAMP LEVELING (HLM), REMOVAL .
  4. Remove the four amplifier (2) screws (3).
  5. Disconnect the wire harness connectors (2) from the amplifier.
  6. Remove the amplifier.
