Installation 2.2L
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

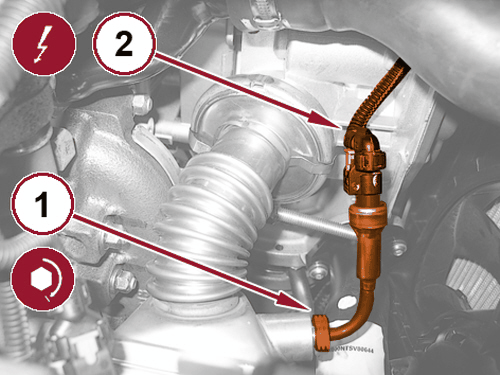

- Install the low pressure EGR cooler temperature sensor (1) and tighten to the proper torque. Refer to EXHAUST GAS RECIRCULATION, DIESEL, TECHNICAL SPECIFICATIONS .
- Connect the low pressure EGR cooler temperature sensor wire harness connector (2).
- Install the belly pan. Refer to BELLY PAN, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
