2.2L Diesel Secondary

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  3. Drain the engine coolant. Refer to DRAINING .
  4. Remove the Diesel Oxidation Catalyst (DOC)/Diesel Particulate Filter (DPF) Refer to FILTER, DIESEL PARTICULATE, REMOVAL .
  5. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .
    NOTE:

    It is not necessary to discharge the A/C system.

  6. Remove the bolts and the AC compressor.
  7. Remove the low pressure EGR air flow control valve. Refer to VALVE, EXHAUST GAS RECIRCULATION (EGR) AIRFLOW CONTROL, REMOVAL .
    GC0169909Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the low pressure EGR cooler temperature sensor wire harness connector (1).
  9. Remove the right side Charge Air Cooler (CAC) hose. Refer to the appropriate service article.
    GC0162275Courtesy of CHRYSLER GROUP, LLC
  10. Loosen the upper camp and remove the EGR cooler inlet tube (1).

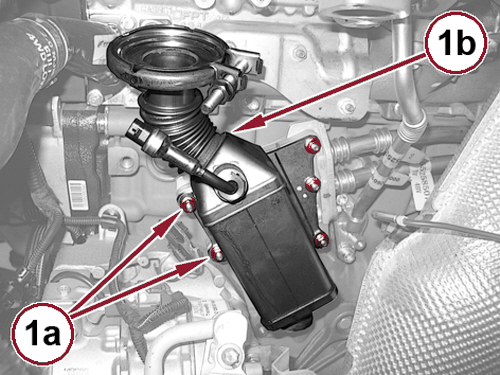

    GC0162245Courtesy of CHRYSLER GROUP, LLC
  11. Remove the nuts (1a) and the low pressure EGR cooler (1b).
    GC0162271Courtesy of CHRYSLER GROUP, LLC
  12. Remove and discard the gaskets seals (1).
    GC0162336Courtesy of CHRYSLER GROUP, LLC
  13. If necessary, remove the nuts (1a) the bolts (1b) and the EGR cooler manifold (1c).
