2.2L Diesel Primary

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery. Refer to BATTERY, REMOVAL .
Remove the engine cover. Refer to the appropriate service article .
Remove the belly pan. Refer to BELLY PAN, REMOVAL .
Drain the engine coolant. Refer to DRAINING .
Remove the thermostat. Refer to THERMOSTAT, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Unlock and disconnect the two Powertrain Control Module (PCM) wire harness connectors (1) from the PCM (2).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the Differential Pressure Sensor (DPS) wire harness connector (3).
Remove the nut (1) and the DPS (2) from bracket and position side.

Courtesy of CHRYSLER GROUP, LLC

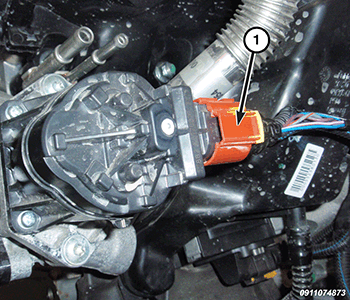

Disconnect the EGR valve wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

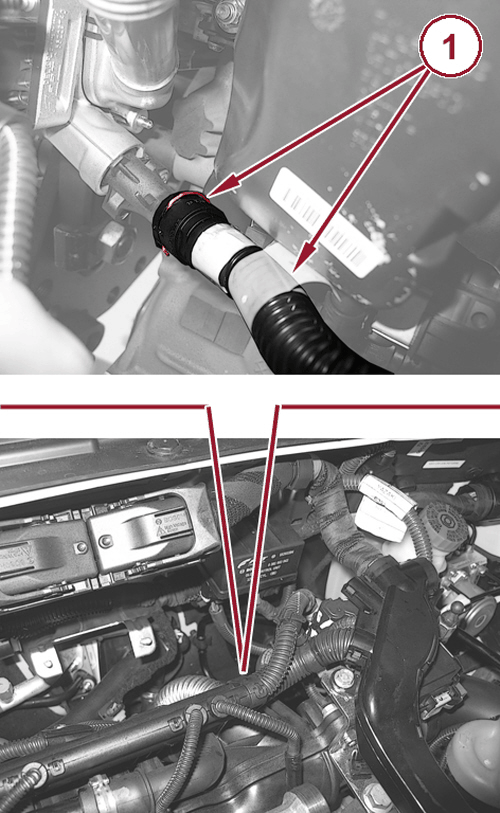

Lift the clip and disconnect the quick coupling coolant hose (1).

Courtesy of CHRYSLER GROUP, LLC

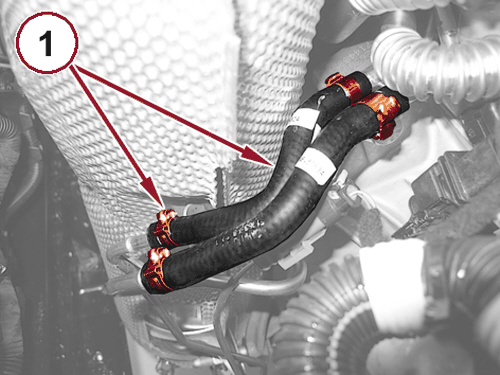

Loosen the clamps and disconnect the DPS hoses (1) to the Diesel Oxidation Catalyst (DOC)/Diesel Particulate Filter (DPF).

Courtesy of CHRYSLER GROUP, LLC

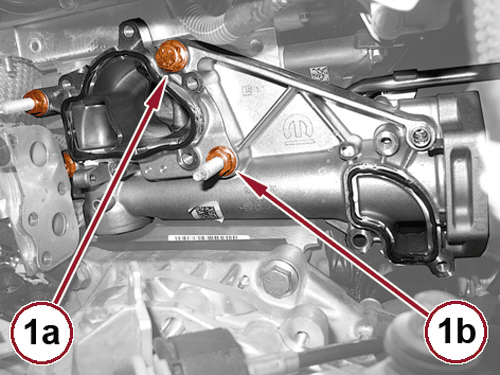

Remove the bolts (1a) and nuts (1b) securing the EGR cooler.

Courtesy of CHRYSLER GROUP, LLC

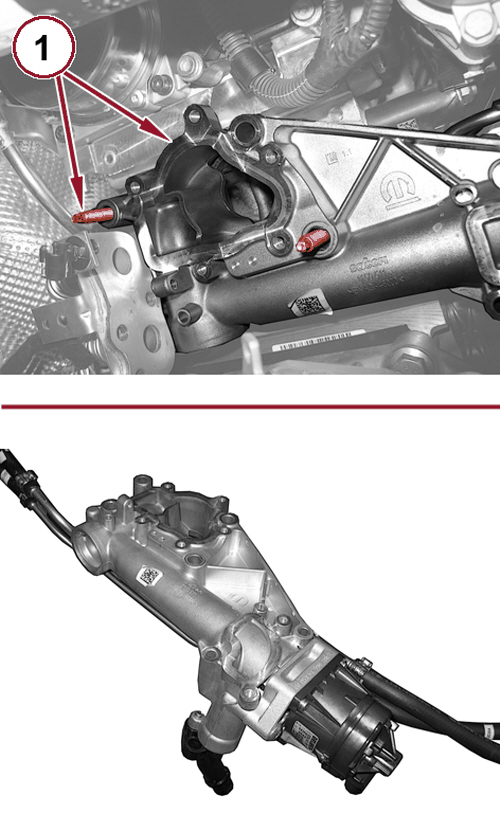

Remove the studs (1) and the EGR cooler assembly.

Courtesy of CHRYSLER GROUP, LLC

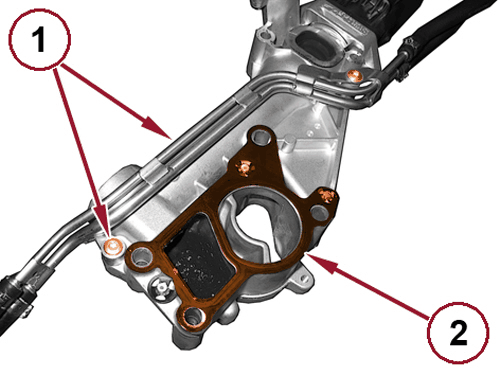

Remove and discard the gasket (2).
If necessary, remove the bolts and the DPS tubing (1).

Courtesy of CHRYSLER GROUP, LLC
If necessary, remove the screw and the water delivery pipe (1) from the cooler complete with O-rings.

Courtesy of CHRYSLER GROUP, LLC

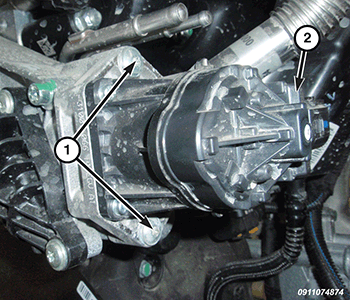

If necessary, remove the bolts (1) and the EGR valve (2).

Courtesy of CHRYSLER GROUP, LLC

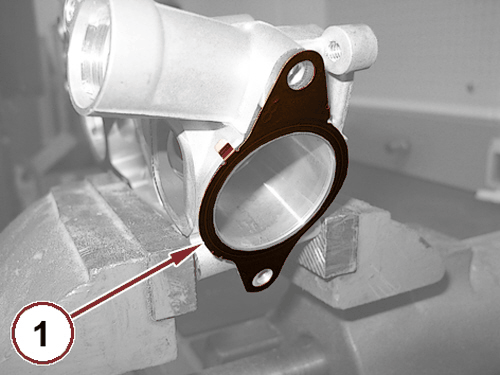

If necessary, remove the gasket (1).
