2.2L Diesel EGR Cooler Inlet Tube
WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the gasket sealing surfaces.
- Using a NEW

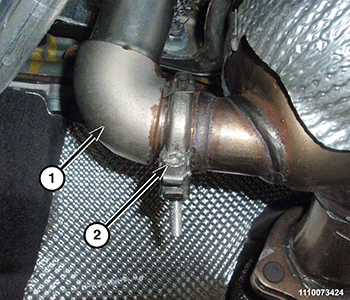

gasket and clamps, install the EGR cooler inlet tube (1) and securely tighten the lower clamp (2).
- Securely tighten the upper EGR cooler tube clamp (1).
- Install the belly pan. Refer to BELLY PAN, INSTALLATION .
- Remove the support and lower the vehicle.
