2.2L Diesel

WARNING: This page is about a different car, the 2017 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to BATTERY, REMOVAL .
  2. Remove the engine cover. Refer to the appropriate service information article.
  3. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  4. Drain the cooling system. Refer to STANDARD PROCEDURE .
    GC0162269Courtesy of CHRYSLER GROUP, LLC

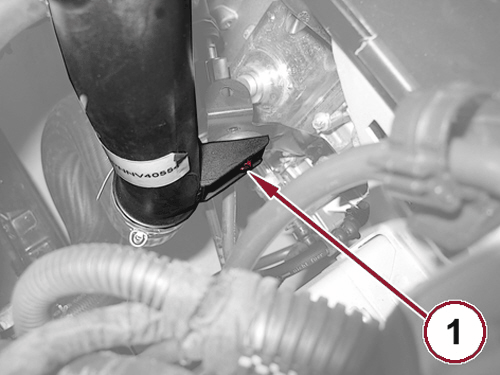

  5. Remove the bolt (1) securing the left Charge Air Cooler (CAC) tube.
    GC0162295Courtesy of CHRYSLER GROUP, LLC

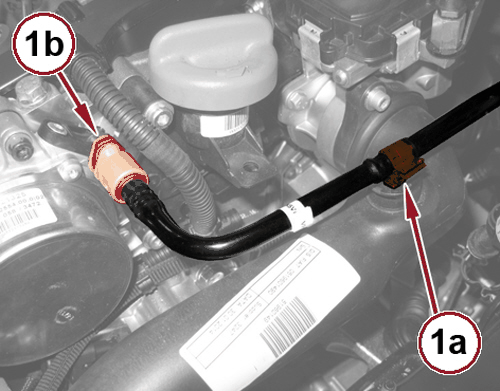

  6. Open the retaining clip (1a) and disconnect the vacuum brake booster hose (1b) quick-disconnect fitting (1b).
    GC0162333Courtesy of CHRYSLER GROUP, LLC

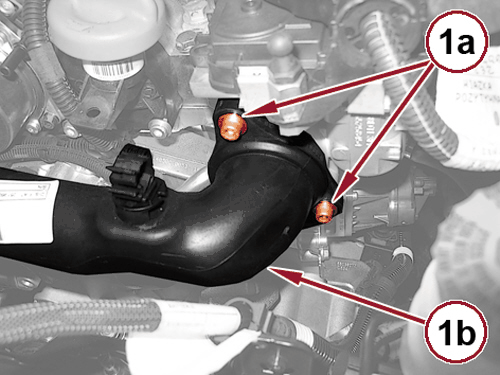

  7. Remove the bolts (1a) and the CAC tube (1b).
    GC0162278Courtesy of CHRYSLER GROUP, LLC

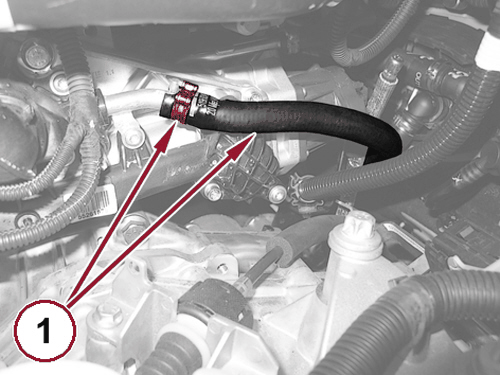

  8. Loosen the clamp and remove the coolant hose (1).
    GC0162205Courtesy of CHRYSLER GROUP, LLC

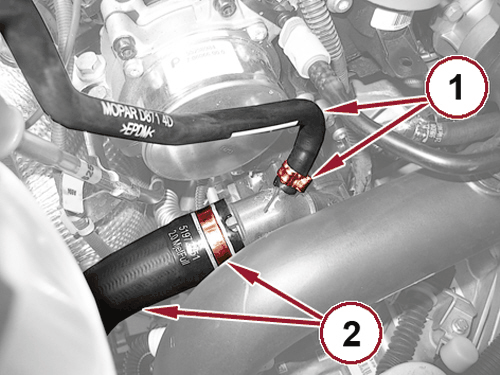

  9. Loosen the clamp and remove the degas hose (1) from the thermostat housing.
  10. Loosen the clamp and remove the upper radiator hose (2) from the thermostat housing.
    GC0162306Courtesy of CHRYSLER GROUP, LLC

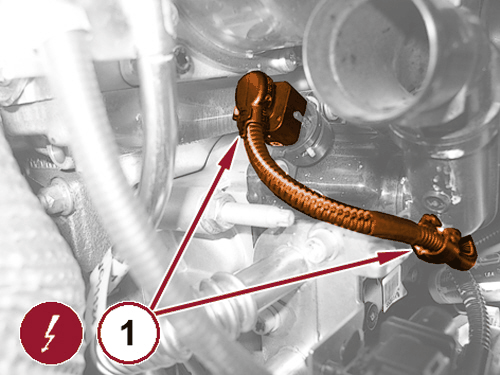

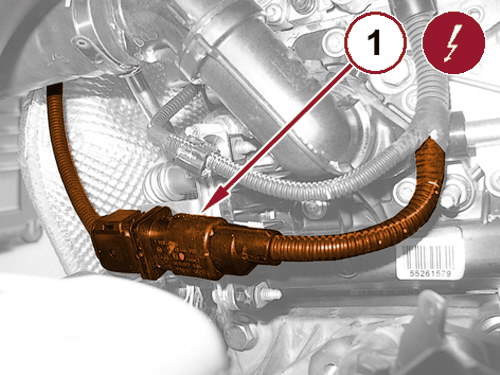

  11. Disconnect the oxygen sensor wire connector (1) and detach wire harness connector from the bracket.
    GC0162330Courtesy of CHRYSLER GROUP, LLC
  12. Disconnect the coolant temperature sensor wire harness connector wire harness connector (1).
    GC0162198Courtesy of CHRYSLER GROUP, LLC

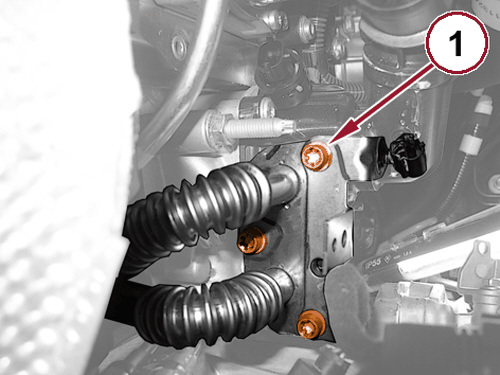

  13. Remove the bolts (1) and the EGR tubes from the thermostat housing.
    GC0162328Courtesy of CHRYSLER GROUP, LLC

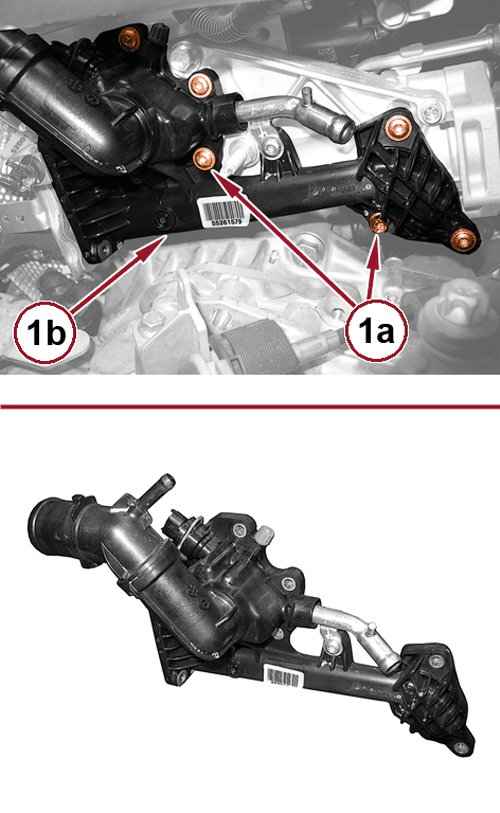

  14. Remove the bolts (1a) and the thermostat housing assembly (1b).
    GC0162313Courtesy of CHRYSLER GROUP, LLC

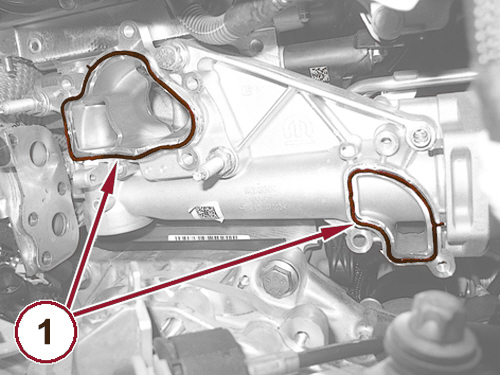

  15. Remove and discard the gasket seals (1).
